Same model may have multiple batches, images only for reference.

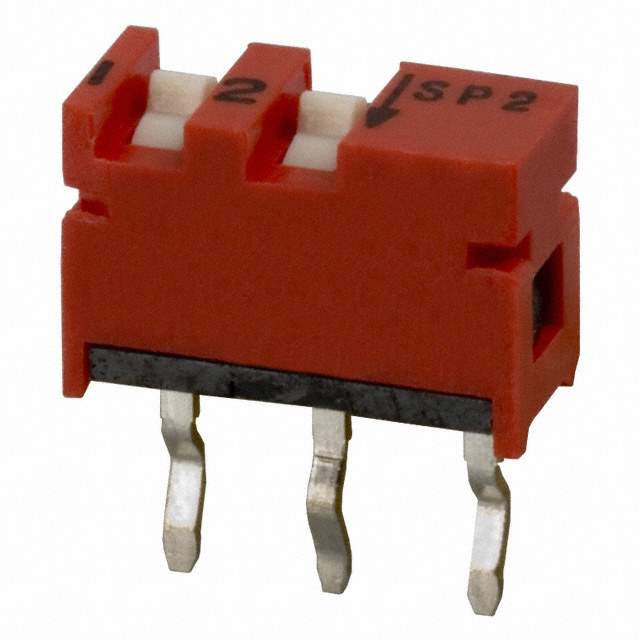

SP02B Real Image
Same model may have multiple batches, images only for reference.

SP02B

Part No SP02B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V  /  Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 10mA 20VDC
Datasheet
SP02B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.196" (4.99mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.298" (7.58mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN9137,*SP02B
Standard Package 60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233697-SP02B
Ultra Librarian 3D Model Ultra Librarian SP02B CAD Model

Description

The SP02B is a DIP switch manufactured by C&K.

  • Manufacturer: C&K
  • Number of Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Circuit: SPST
  • Actuator Level: Flush, recessed
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Mounting: Through-hole
  • Temperature Range: -20°C ~ 85°C
