Same model may have multiple batches, images only for reference.

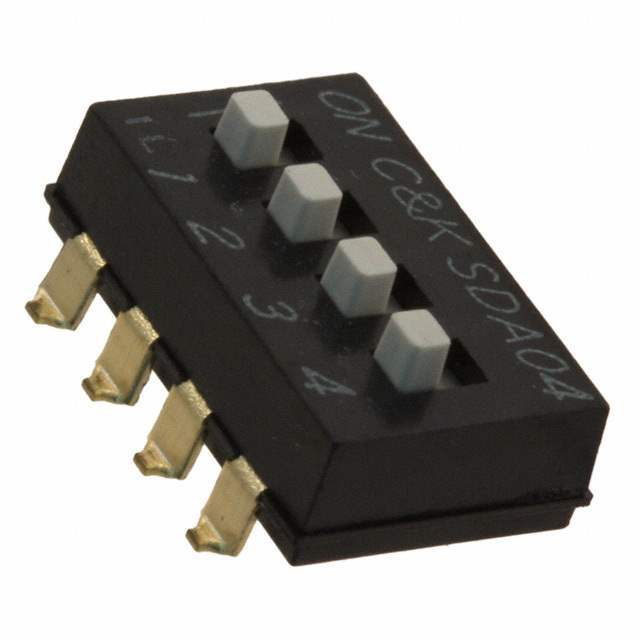

SDA04H1SBDR C&K
Same model may have multiple batches, images only for reference.

SDA04H1SBDR

Part No SDA04H1SBDR
Manufacturer C&K Components
Catalog DIP Switches
Description DIP SWITCH SMD 4 POS
Datasheet
SDA04H1SBDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208963-SDA04H1SBDR
Manufacturer C&K
Category Switches -DIP Switches
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Ultra Librarian 3D Model Ultra Librarian SDA04H1SBDR CAD Model

Description

CONTACT RATING: 25 mA @ 24 V DC or 100 mA @ 5 V DC. MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles at rated loads. CONTACT RESISTANCE: 50 mΩ max. initial. INSULATION RESISTANCE: 100 MΩ between terminals. DIELECTRIC WITHSTANDING VOLTAGE: 300 V DC min. for 1 min.
