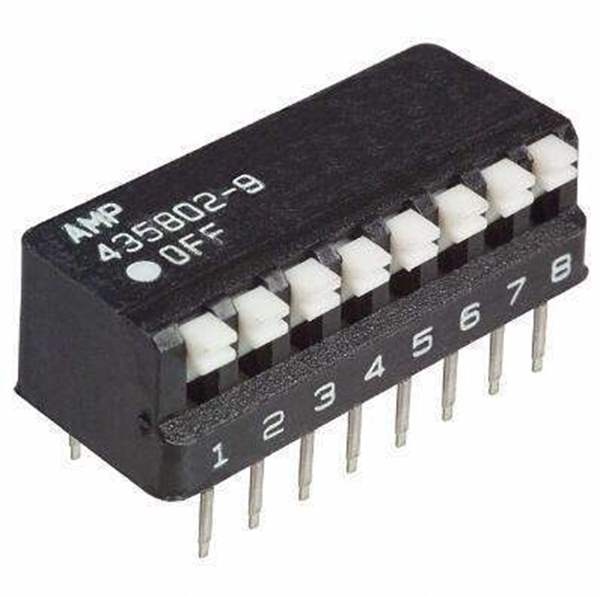

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity ALCOSWITCH Switches
Category Switches DIP Switches
Package Tube
Product Status Last Time Buy
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Contact Material Copper Alloy
Height Above Board 0.290" (7.37mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Win Source Part Number WS1209303-5435802-9
Ultra Librarian 3D Model Ultra Librarian 5435802-9 CAD Model

Description

Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
