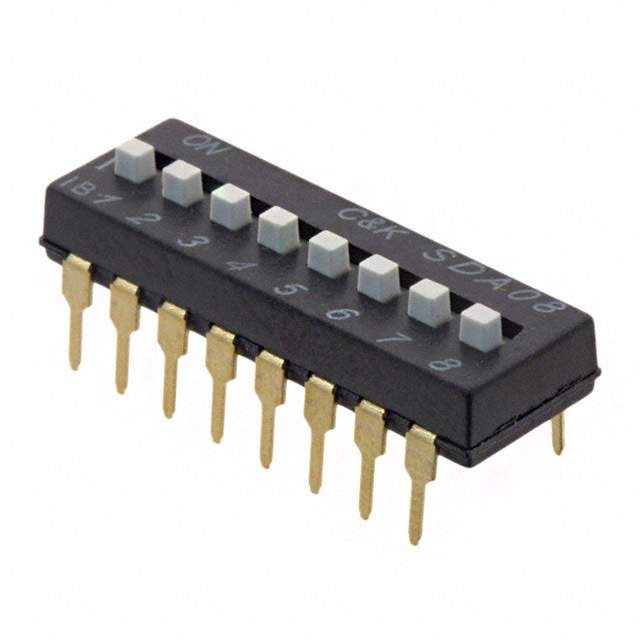

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.228" (5.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.876" (22.26mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA08H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names *SDA08H1BD,CKN6091,2266-SDA08H1BD
Standard Package 20
Win Source Part Number 1186528-SDA08H1BD
Ultra Librarian 3D Model Ultra Librarian SDA08H1BD CAD Model

Description

The SDA08H1BD is a DIP switch manufactured by C&K.

  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • Win Source Part Number: 1186528-SDA08H1BD
  • Category: Switches>DIP Switches
  • Series: SDA
  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Contact Finish: gold
  • Package: tube
  • Contact Material: Beryllium Copper
  • Voltage Rating: 24VDC
  • Height Above Board: 0.228" (5.80mm)
  • Length: 0.876" (22.26mm)
  • Standard Package: 20
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: slide (Standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: raised
  • Washable: no
  • Mounting Type: through hole
  • Temperature Range - Operating: -40°C ~ 85°C
  • Alternative Parts (cross-reference): SDA08H1BD
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
