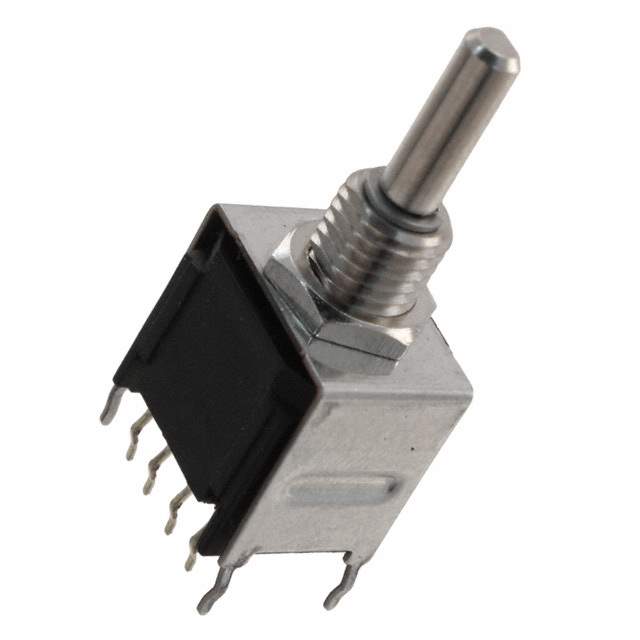

FR01AR16PB-S Real Image
Same model may have multiple batches, images only for reference.

FR01AR16PB-S

Part No FR01AR16PB-S
Manufacturer NKK Switches
Catalog DIP Switches
Description SWITCH ROTARY DIP HEX 100MA 5V / Dip Switch Hexadecimal 16 Position Panel Mount Rotary with Shaft Actuator 100mA 5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr NKK Switches
Series FR01
Package Tube
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 1.104" (28.05mm)
Mounting Type Panel Mount
Termination Style PC Pin
Pitch 0.100" (2.54mm) , Full
Washable No
Temperature Range - Operating -25°C ~ 85°C
Body Material Polyamide (PA) , Nylon, Glass Filled
Length 0.516" (13.11mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Base Product Number FR01AR16
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 1338969-FR01AR16PB-S
Ultra Librarian 3D Model Ultra Librarian FR01AR16PB-S CAD Model

Description

The NKK Switches FR01AR16PB-S is a DIP switch with a hexadecimal circuit and a rotary with shaft actuator type.

  • Circuit: Hexadecimal
  • Actuator Type: Rotary with Shaft
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Operating Temperature: -25°C to 85°C
  • Package: Tube
  • Standard Package: 25
