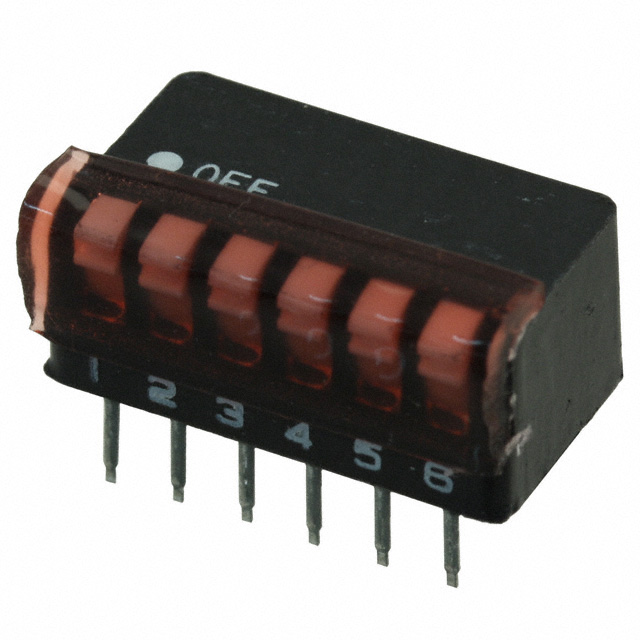

1-5435802-7 TE Connectivity
Same model may have multiple batches, images only for reference.

1-5435802-7

Part No 1-5435802-7
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V
Datasheet
1-5435802-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series 7000
Packaging Tube
Circuit SPST
Number of Positions 6
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.290" (7.37mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Body Material Polyester (PET), Glass Filled
Length 0.680" (17.27mm)
Operating Temperature Range -55°C ~ 105°C
Mechanical Life 7,000 Cycles
Electrical Life 7,000 Cycles
Win Source Part Number 760476-1-5435802-7
Popularity Medium
Supply and Demand Status Limited
Family Name 5435802
Introduction Date September 28, 2005
ECCN EAR99
Country of Origin Mexico
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1-5435802-7 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches 760476-1-5435802-7 is a switch product with a SPST circuit.

  • Circuit: SPST
  • Mounting Type: Through Hole, Right Angle
  • Pitch: 0.100" (2.54mm), Full
  • Electrical Life: 7,000 cycles
  • Mechanical Life: 7,000 cycles
  • Estimated EOL Date: 2026
