Same model may have multiple batches, images only for reference.

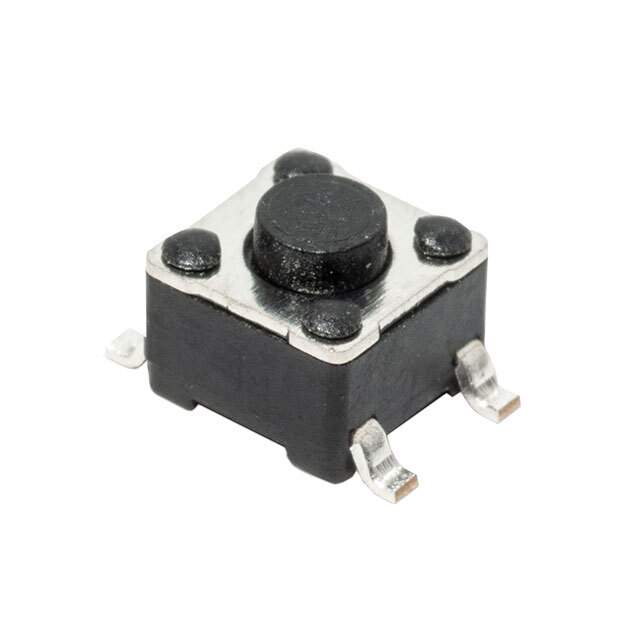

PTS 647 SM38 SMTR2 LFS Real Image
Same model may have multiple batches, images only for reference.

PTS 647 SM38 SMTR2 LFS

Part No PTS 647 SM38 SMTR2 LFS
Manufacturer C&K Components
Catalog Tactile Switches
Description TACT 4.5 X 4.5, 3.8 MM H, 1.8N, / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
PTS 647 SM38 SMTR2 LFS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Manufacturer C&K
Packaging Reel - TR
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Surface Mount
Actuator Height off PCB, Vertical 3.80mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.50mm x 4.50mm
Illumination Non-Illuminated
Operating Force 180gf
Ingress Protection IP40
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number PTS 647
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number PTS647SM38SMTR2LFSTR,Y97KT23B2NAFP,PTS647SM38SMTR2LFSDKR,PTS647SM38SMTR2LFSCT
Standard Package 2,000
Win Source Part Number 1323845-PTS 647 SM38 SMTR2 LFS
Ultra Librarian 3D Model Ultra Librarian PTS 647 SM38 SMTR2 LFS CAD Model

Description

The Tactile Switch from C&K is a highly reliable device designed for switching applications.

  • Mounting Type: surface mount
  • Circuit: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: standard
  • Actuator Orientation: top actuated
  • Actuator Height off PCB, Vertical: 3.80mm
  • Actuator Length, Right Angle: -
  • Contact Rating: 0.05A @ 12VDC
  • Operating Force: 180gf
  • Mechanical Life: 100,000 cycles
  • Ingress Protection: IP40
  • Package: reel
  • Standard Package: 2,000
