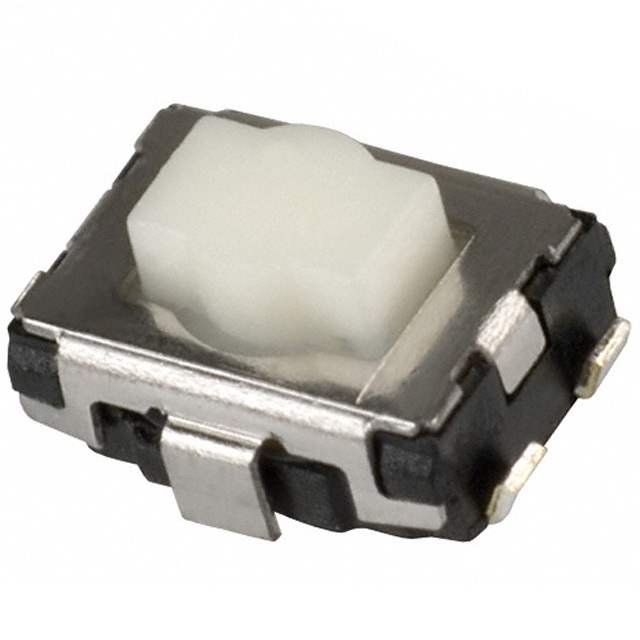

EVQ-P2P02W Real Image
Same model may have multiple batches, images only for reference.

EVQ-P2P02W

Part No EVQ-P2P02W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 100gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 128731-EVQ-P2P02W
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-P2P02W CAD Model

Description

Product Description

The EVQ-P2P02W features advanced mechanics tailored to guarantee superior performance in all operating conditions. This versatile tactile switch is perfect for various technological environments, providing exceptional reliability.

Applications

  • Medical Devices
  • Telecommunication Equipment
  • Portable Electronics
  • Computing Devices

Features and Benefits

  • Minimal operating force for enhanced user comfort
  • High-reliability contacts reduce maintenance requirements
  • Stable operating characteristics under different loads
  • Energy-efficient design promotes longer device lifespan

Additional Details

With its user-friendly operation and compact form factor, the EVQ-P2P02W is a leading choice for engineers looking to design efficient, high-performance systems.
