Same model may have multiple batches, images only for reference.

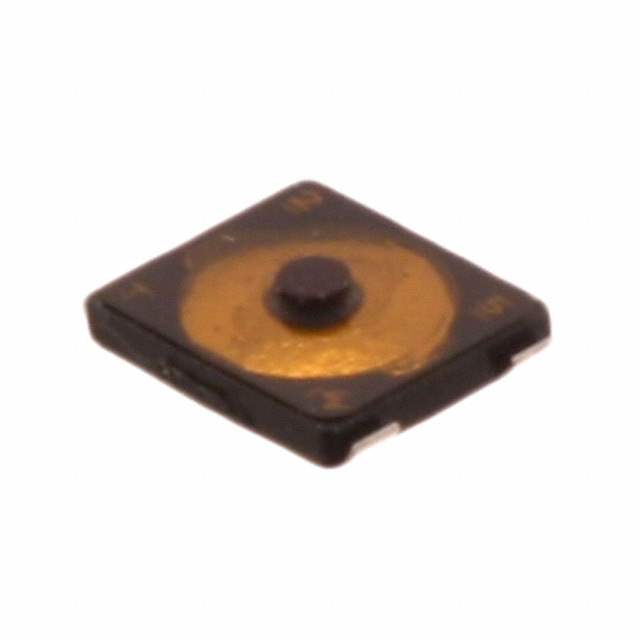

EVP-AF5B70 Real Image
Same model may have multiple batches, images only for reference.

EVP-AF5B70

Part No EVP-AF5B70
Manufacturer Panasonic
Catalog Tactile Switches
Description Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 3.4N SMD T/R / SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.70mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Operating Force 340gf
Switch Travel 0.15mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 107217-EVP-AF5B70
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 8k pcs
Family Name EVPAF
Introduction Date June 08, 2007
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EVP-AF5B70 CAD Model

Description

Product Overview

The EVP-AF5B70 tact switch is designed to deliver optimal performance and reliability in a compact form factor. Ideal for modern electronic devices, this switch ensures high durability and responsive actuation.

Features and Benefits

  • Responsive Actuation: Provides a tangible feedback with every press.
  • Compact and Lightweight: Fits well in space-constrained applications without adding excess weight.
  • Durability: High cycle life ensures longevity.

Applications

  • Portable electronics
  • Telecommunications equipment
  • Remote controls

Additional Details

With its robust construction, the EVP-AF5B70 can withstand repetitive use, making it an excellent choice for consumer electronics and industrial devices alike.
