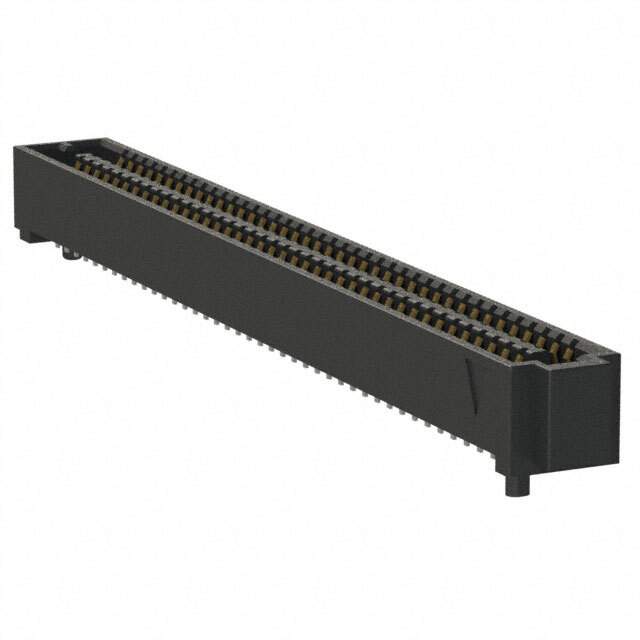

SEAF8-40-05.0-L-04-2-K Real Image
Same model may have multiple batches, images only for reference.

SEAF8-40-05.0-L-04-2-K

Part No SEAF8-40-05.0-L-04-2-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF8-40-05.0-L-04-2-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Bulk
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.031" (0.80mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 7mm, 10mm
Height Above Board 0.180" (4.57mm)
Base Product Number SEAF8-40
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293948-SEAF8-40-05.0-L-04-2-K
Ultra Librarian 3D Model Ultra Librarian SEAF8-40-05.0-L-04-2-K CAD Model

Description

The SEAF8-40-05.0-L-04-2-K is a high-density array, female connector designed for use in board-to-board connections.

  • Positions: 160
  • Rows: 4
  • Pitch: 0.031 inches (0.80mm)
  • Contact Finish: Gold
  • Finish Thickness: 10.0µin (0.25µm)
  • Packaging: Bulk
  • Features: Board Guides, Pick and Place
  • Height Above Board: 0.180 inches (4.57mm)
  • Mated Stacking Heights: 7mm and 10mm
  • Mounting: Surface Mountable
  • ECCN: EAR99
