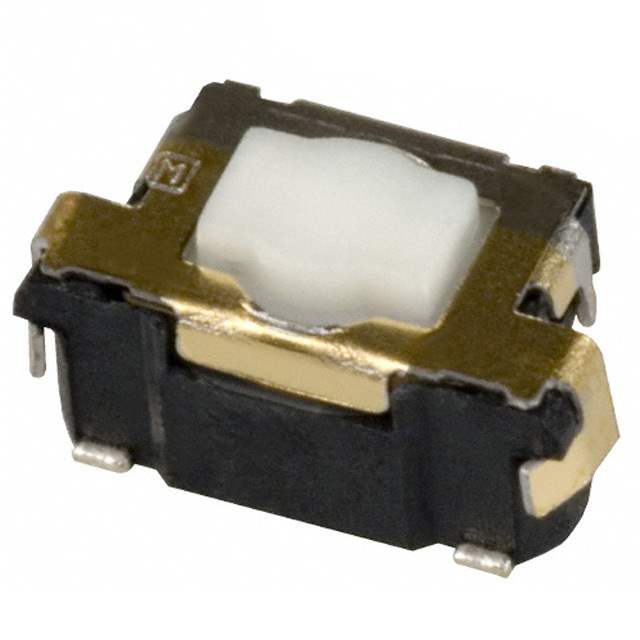

EVQ-P4203M Real Image
Same model may have multiple batches, images only for reference.

EVQ-P4203M

Part No EVQ-P4203M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Datasheet
EVQ-P4203M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Edge Mount, Right Angle
Actuator Length, Right Angle 2.10mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 6.20mm x 2.55mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 128057-EVQ-P4203M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EVQ-P4203M CAD Model

Description

Product Description

The EVQ-P4203M is crafted to offer substantial performance and seamless integration into advanced electronic systems. It is a reliable tactile switch ideal for applications demanding resilience and precision.

Applications

  • Robotics
  • Information Technology Equipment
  • Instrumentation
  • Mobile Devices

Features and Benefits

  • Durable design supports intensive use
  • Excellent contact stability ensures accurate operation
  • Versatile form factor for diverse product designs
  • Cost-effective solution for high-quality applications

Additional Details

Featuring superior engineering, the EVQ-P4203M delivers reliable tactile performance, making it an essential component in sophisticated electronic architectures.
