Same model may have multiple batches, images only for reference.

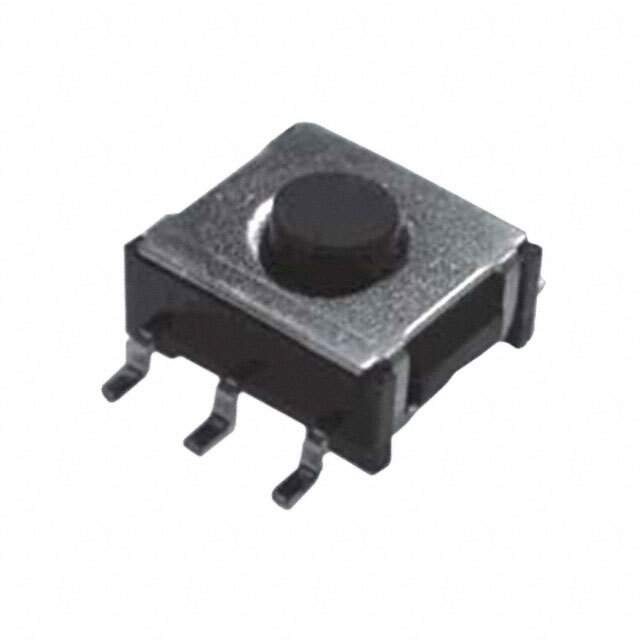

SMTG1-01-Z Real Image
Same model may have multiple batches, images only for reference.

SMTG1-01-Z

Part No SMTG1-01-Z
Manufacturer Copal Electronics Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 48V
Datasheet
SMTG1-01-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Tube/Rail
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 48VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 7.50mm x 6.50mm
Illumination Non-Illuminated
Operating Force 200gf
Switch Travel 0.50mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 329792-SMTG1-01-Z
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SMTG1-01-Z CAD Model

Description

The Copal Electronics Inc. 329792-SMTG1-01-Z is an SMD (SMT) SPST-NO switch with a Gull Wing termination style.

  • Manufacturer: Copal Electronics Inc.
  • Product Name: 329792-SMTG1-01-Z
  • Type: SMD (SMT) SPST-NO Switch
  • Termination Style: Gull Wing
  • Actuator Type: Top Actuated Standard
  • Switch Function: Off-Mom
  • Switch Travel: 0.50mm
  • Contact Rating: 0.05A @ 48VDC
  • Illumination Voltage: Nominal
  • Illumination: Non-Illuminated
  • Operating Force: 200gf
  • Mechanical Life: 100,000 Cycles
  • Outline: 7.50mm x 6.50mm
  • Actuator Height off PCB: Vertical of 4.00mm
  • Temperature Range: -25°C to 70°C
  • Application: Consumer Electronics, Industrial Equipment, and Telecommunications
  • Availability: Actively Available
  • Popularity: Medium
  • Supply and Demand Status: Limited
