Same model may have multiple batches, images only for reference.

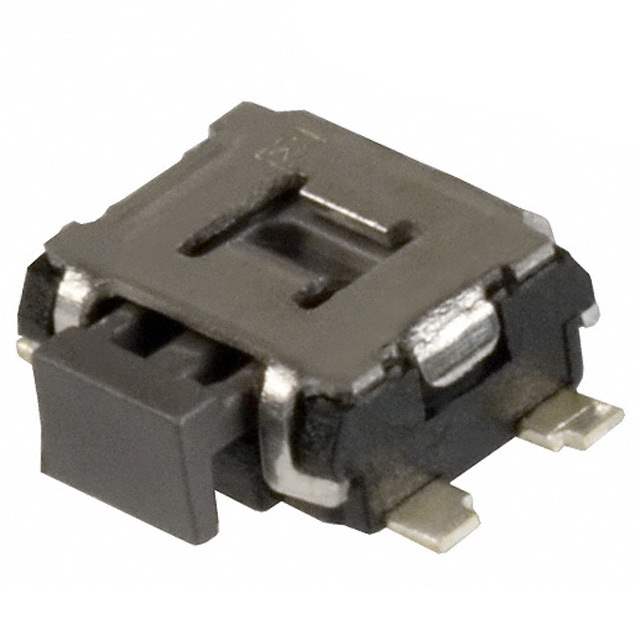

EVQ-P7C01K Real Image
Same model may have multiple batches, images only for reference.

EVQ-P7C01K

Part No EVQ-P7C01K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
EVQ-P7C01K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 3.50mm x 2.90mm
Illumination Non-Illuminated
Operating Force 220gf
Features Board Guide
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001029-EVQ-P7C01K
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Portable Devices, Imaging, Video & Vision, Audio, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian EVQ-P7C01K CAD Model

Description

EVQ-P7C01K Features and Benefits

  • Compact Design: Perfect for space-constrained applications.
  • High Durability: Ensures a longer lifecycle.
  • Excellent Tactile Feedback: Provides a responsive user interaction.

Applications

  • Consumer Electronics
  • Industrial Controls
  • Home Appliances

The EVQ-P7C01K is an ideal choice for those needing a reliable and durable switch. Its compact design allows it to be incorporated into various applications seamlessly, while providing excellent tactile feedback ensuring optimal performance. Whether you are designing innovative consumer electronics or rugged industrial controls, the EVQ-P7C01K meets various demanding requirements.
