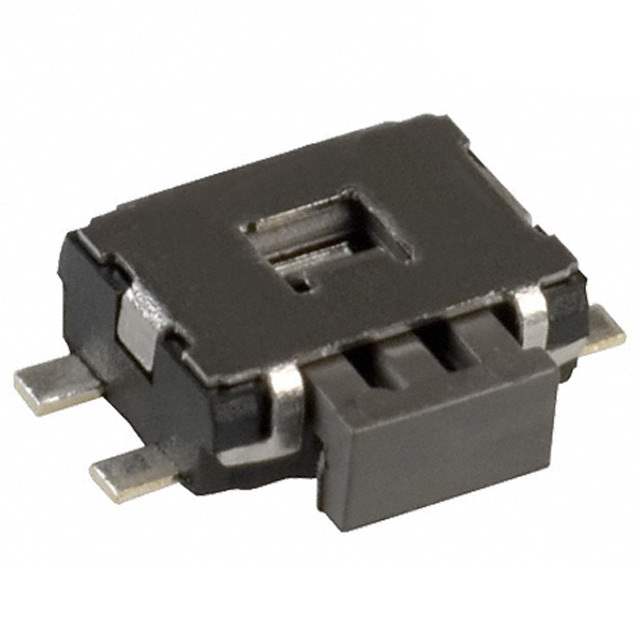

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 220gf
Features Board Guide
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001034-EVQ-PUC02K
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-PUC02K CAD Model

Description

Product Description

The EVQ-PUC02K tactile switch is an advanced, user-friendly component widely used in multiple electronic devices. It stands out for its smooth operational performance and longevity.

Features and Benefits

  • Consistency: Delivers consistent performance with a low actuation force.
  • Long Service Life: Withstands high cycle use, ensuring cost efficiency over time.
  • Minimal Bounce: Reduces debounce issues common in similar switches.
  • Environmentally Friendly: Meets RoHS compliance standards.

Applications

  • Telecommunication equipment
  • Portable electronics
  • Vehicle control panels
  • White goods

This switch is perfect for applications demanding reliability and user comfort.
