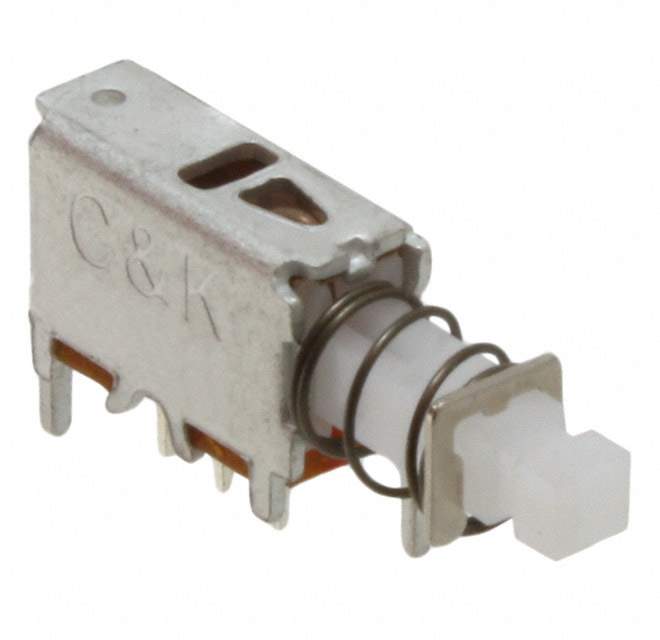

PN12SJNA03QE Real Image
Same model may have multiple batches, images only for reference.

PN12SJNA03QE

Part No PN12SJNA03QE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.2A 30V / Pushbutton Switch SPDT Standard Through Hole, Right Angle
Datasheet
PN12SJNA03QE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr C&K
Series PN
Package Bulk
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Moving LED Ring
Temperature Range - Operating -10°C ~ 60°C
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number PN12SJNA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Other Names CKN9477,*PN12SJNA03QE
Standard Package 70
Win Source Part Number 1227354-PN12SJNA03QE
Ultra Librarian 3D Model Ultra Librarian PN12SJNA03QE CAD Model

Description

The PN series pushbutton switch from C&K is a standard type switch with SPDT circuit and plunger for cap actuator type.

  • Mechanical Life: 10,000 cycles
  • Electrical Life: 10,000 cycles
  • Voltage Rating: 30 V DC
  • Current Rating: 200 mA DC
  • Features: Moving LED Ring
  • Color: Black
  • Mounting: Through Hole, Right Angle
  • Temperature Range: -10°C to 60°C
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8536.50.9033
  • Packaging: Bulk
  • Standard Package: 70
