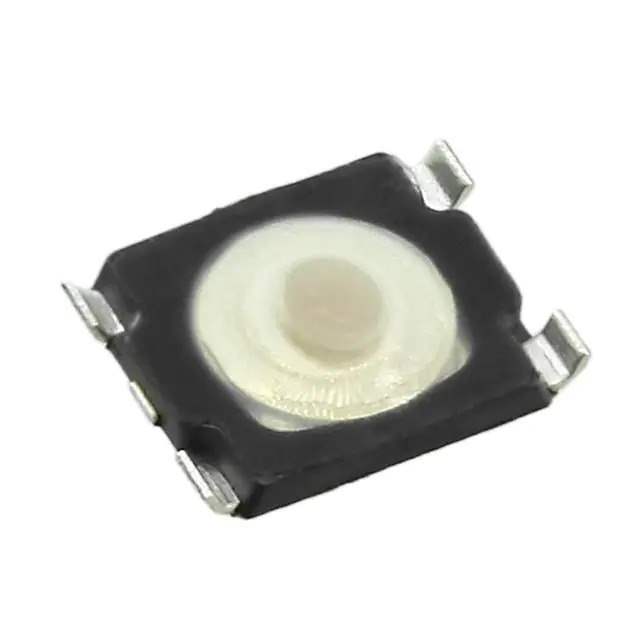

KMT011 NGJ LHS Real Image
Same model may have multiple batches, images only for reference.

KMT011 NGJ LHS

Part No KMT011 NGJ LHS
Manufacturer C&K Components
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
KMT011 NGJ LHS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K Components
Series KMT0
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.65mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 3.00mm x 2.60mm
Illumination Non-Illuminated
Operating Force 100gf
Ingress Protection IP68 - Dust Tight, Waterproof
Features Tactile Feedback
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.15mm
Mechanical Life 300,000 Cycles
Base Product Number KMT011
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 876390-KMT011 NGJ LHS
Ultra Librarian 3D Model Ultra Librarian KMT011 NGJ LHS CAD Model

Description

The KMT011 NGJ LHS series tactile switch by C&K Components is a high-quality electronic component designed for precise and reliable switching action.

  • Standard Package: 5,000 pcs
  • Termination Style: J Lead
  • Operating Force: 100gf
  • Series: KMT011 NGJ LHS
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Outline Dimensions: 3.00mm x 2.60mm
  • Mounting Type: Surface Mountable
  • Temperature Range: -40°C to 85°C
  • Ingress Protection: IP68 (Dust Tight and Waterproof)
