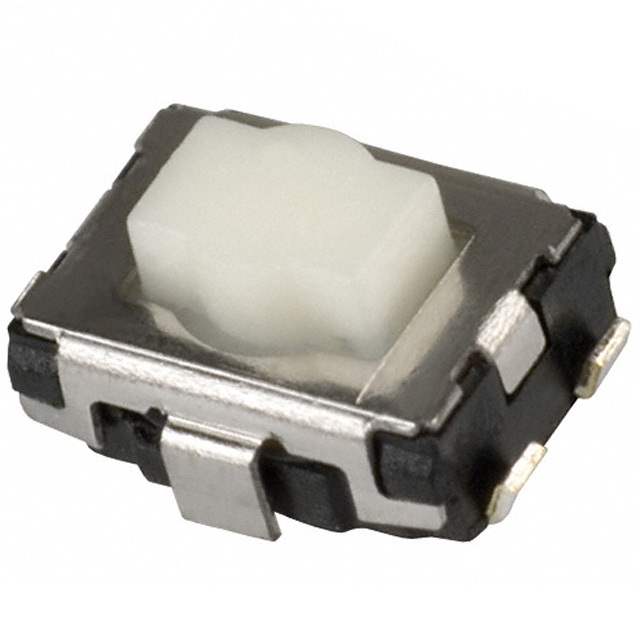

EVQ-P2R02W Real Image
Same model may have multiple batches, images only for reference.

EVQ-P2R02W

Part No EVQ-P2R02W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 116510-EVQ-P2R02W
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-P2R02W CAD Model

Description

Product Description

Designed with precision, the EVQ-P2R02W tactile switch delivers flawless performance across diverse environments. Its ergonomic design enhances user interaction making it suitable for complex technological frameworks.

Applications

  • Wearable Technology
  • Smart Home Devices
  • Security Systems
  • Audio and Visual Equipment

Features and Benefits

  • Fast response time ensures immediate user feedback
  • Robust construction for extended device longevity
  • Intuitive engagement improves interaction efficiency
  • Applicable to numerous device interfaces

Additional Details

The EVQ-P2R02W stands out due to its ease of integration and compatibility with complex circuitry, making it ideal for cutting-edge product designs.
