Same model may have multiple batches, images only for reference.

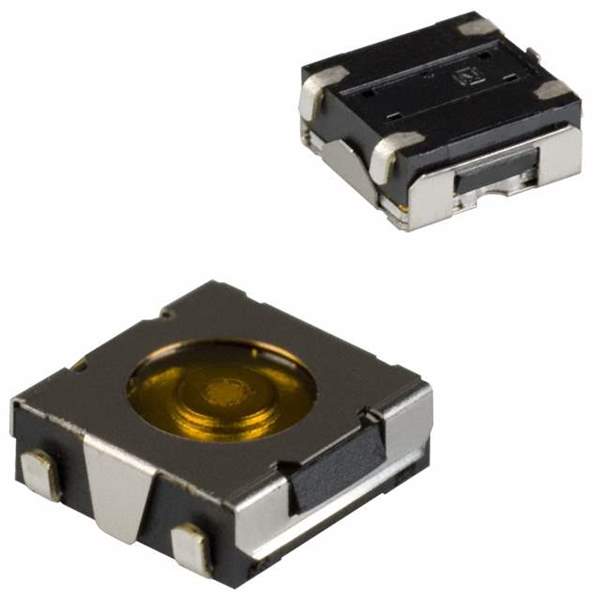

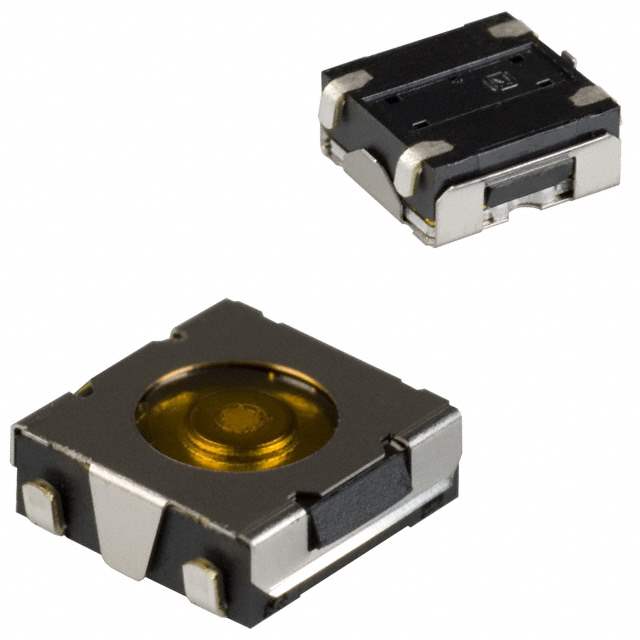

EVQ-QFV02K Real Image
Same model may have multiple batches, images only for reference.

EVQ-QFV02K

Part No EVQ-QFV02K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Datasheet
EVQ-QFV02K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.00mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 130gf
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001037-EVQ-QFV02K
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQ-QFV02K CAD Model

Description

Product Description

The EVQ-QFV02K switch delivers unmatched reliability with its high-quality construction and precision design. It's ideal for both commercial and industrial applications.

Features and Benefits

  • Robust Design: Built to withstand demanding conditions.
  • Extended Life: Overcomes numerous operational challenges while maintaining integrity.
  • Precise Actuation: Accurate and dependable every time.
  • Cost-Effective: Balances quality and affordability.

Applications

  • Office machines
  • Instrumentation
  • Test and measurement tools
  • Robotics

This switch's robust and meticulously crafted design provides exceptional performance across various demanding applications.
