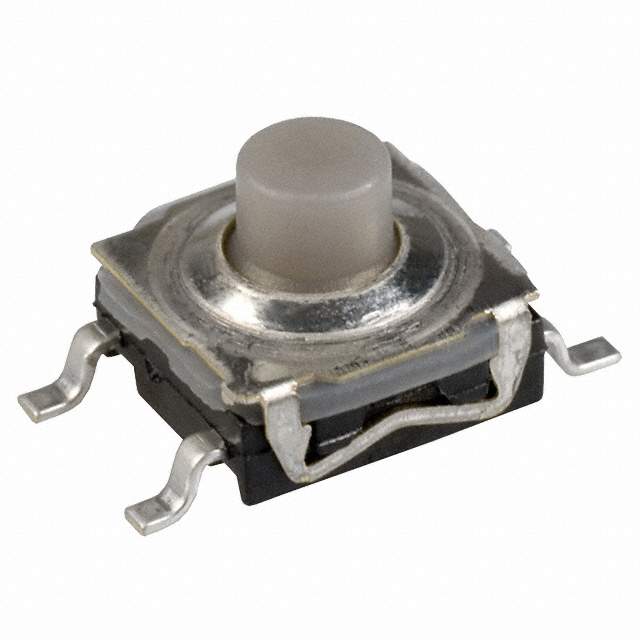

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K
Packaging Reel
Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 32VDC
Actuator Type Standard
Mounting Style SMD
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.20mm x 6.20mm
Illumination Non-Illuminated
Operating Force 200gf
Ingress Protection IP40
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Rubber
Switch Travel 1.30mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1193768-KST221G
Manufacturer Homepage www.ck-components.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian KST221G CAD Model

Description

The KST221G is a switch from C&K.

  • Popularity: Medium
  • Supply and Demand: Balanced
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Material: Rubber
  • Actuator Type: Standard
  • Switch Travel: 1.30mm
  • Mechanical Life: 100,000 Cycles
  • Illumination: Non-Illuminated
  • Operating Force: 200gf
  • Temperature Range: -40°C ~ 85°C
  • Outline: 6.20mm x 6.20mm
  • Termination Style: Gull-Wing
  • Body Material: Polyamide (PA46), Nylon 4/6
  • Contact Rating: 0.05A @ 32VDC
  • Status: Obsolete
