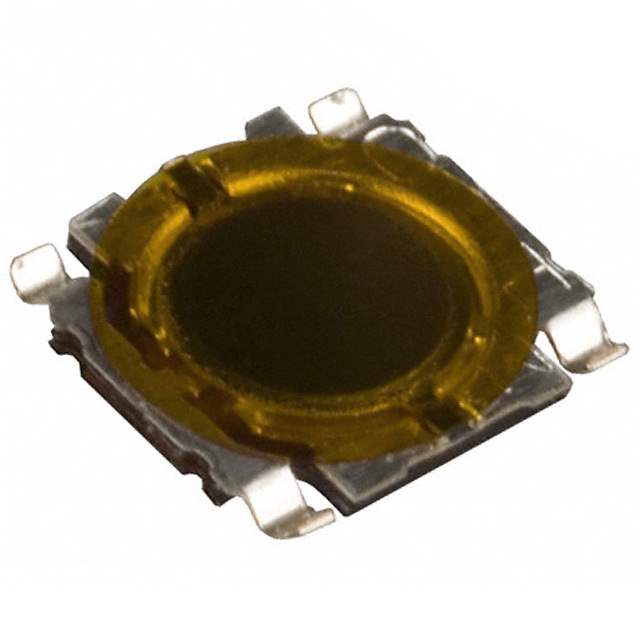

EVQ-PQHB55 Real Image
Same model may have multiple batches, images only for reference.

EVQ-PQHB55

Part No EVQ-PQHB55
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Snap Dome
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.55mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 4.50mm x 4.50mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001031-EVQ-PQHB55
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Audio, Automotive, Consumer Electronics
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-PQHB55 CAD Model

Description

EVQ-PQHB55 Features and Benefits

  • Waterproof Design: Suitable for outdoor and harsh environments.
  • High Actuation Force: Prevents accidental presses.
  • Easy Integration: Streamlined connection to electronic systems.

Applications

  • Outdoor Panel Controls
  • Marine Electronics
  • Public Kiosks

Engineered with a waterproof design, the EVQ-PQHB55 switch thrives in outdoor and challenging environments. It provides a high actuation force to minimize accidental activations, making it perfect for public installations and marine applications.
