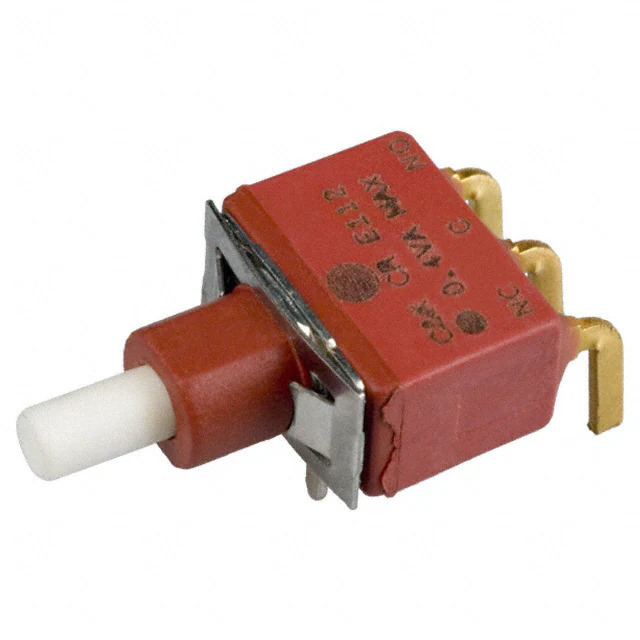

E112SD1AQE C&K Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series E010
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Process Sealed
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 75°C
Mechanical Life -
Electrical Life 40,000 Cycles
Base Product Number E112SD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376052-E112SD1AQE
Ultra Librarian 3D Model Ultra Librarian E112SD1AQE CAD Model

Description

The E112SD1AQE is a standard pushbutton switch manufactured by C&K.

  • Series: E010
  • Mounting: Through-hole, right angle
  • Current Rating: 4A (AC/DC)
  • Voltage Rating: 125V AC and 28V DC
  • Actuator Type: Round with a white color
  • Marking/Illumination: None
  • Termination Style: PC pin
  • Process Sealing: Yes
  • Temperature Range: -30°C to 75°C
  • Mechanical Life: 40,000 cycles
