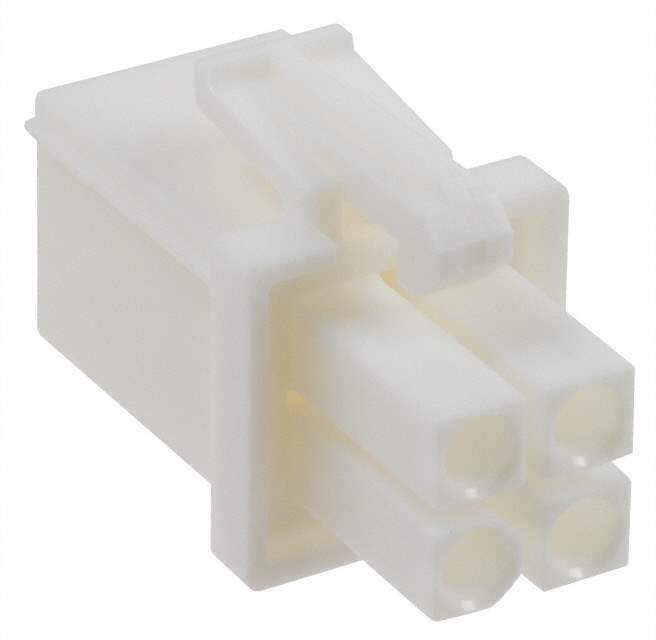

794805-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Male or Female
Number of Positions 4
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Note Contacts Not Included
Base Product Number 794805
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 2266-794805-1,7948051,-794805-1-LSI,A30710,-794805-1-SI,-794805-1-CSI
Standard Package 1
Win Source Part Number 1334422-794805-1
Ultra Librarian 3D Model Ultra Librarian 794805-1 CAD Model

Description

The 1334422-794805-1 is a rectangular connector housing from TE Connectivity AMP Connectors.

  • Connector Type: plug
  • Positions: 4
  • Pitch: 0.163" (4.14mm)
  • Color: white
  • Contact Type: male or female
  • Packaging: bulk
  • Fastening Type: latch lock
  • Contact Termination: crimp
  • Contacts Included: no
  • ECCN: EAR99
  • HTSUS: 8538.90.6000
