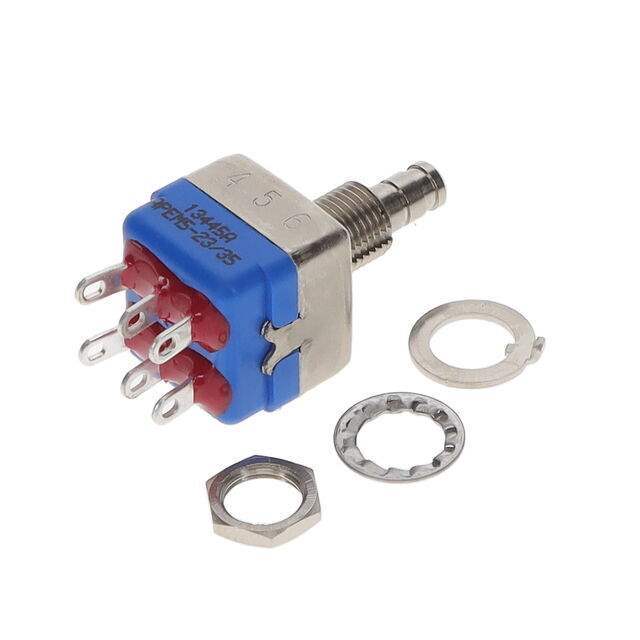

Win Source Part Number WS1310186-13445A
Manufacturer APEM Inc.
Category Switches > Pushbutton Switches
Packaging Bulk
Part Status Active
Mounting Type Panel Mount, Rear
Type Standard
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Actuator Type Plunger for Cap
Ultra Librarian 3D Model Ultra Librarian 13445A CAD Model

Description

• Max. current/voltage rating with resistive load: - silver contacts (A-AD2) : 4 A 30 VDC - gold plated contacts (CD) : 100 mA 30 V • Minimum load (AD2-CD contacts) : 10 mA 50 mV, 10 µA 5 V min. • Initial contact resistance : 10 mΩ max. • Insulation resistance :1,000 MΩ min. at 5 00VDC • Dielectric strength : 1,000 Vrms 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between poles and between terminals and frame • Contact bounce : 2 ms max.
