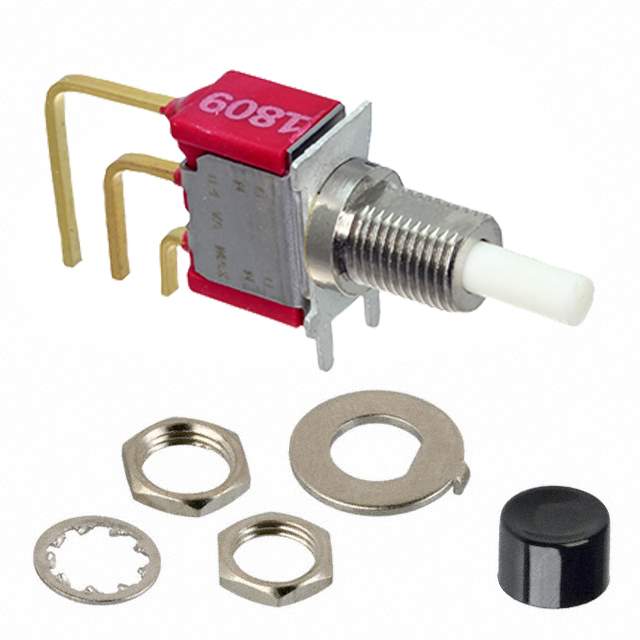

8161SHAV2BE2 Real Image
Same model may have multiple batches, images only for reference.

8161SHAV2BE2

Part No 8161SHAV2BE2
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V / Pushbutton Switch SPDT Standard Panel Mount, Right Angle, Vertical, Rear
Datasheet
8161SHAV2BE2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series 8060
Package Tray
Mounting Type Panel Mount, Right Angle, Vertical, Rear
Type Standard
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 6.35mm Dia
Temperature Range - Operating -30°C ~ 65°C
Electrical Life 50,000 Cycles
Base Product Number 8161SH
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1337515-8161SHAV2BE2
Ultra Librarian 3D Model Ultra Librarian 8161SHAV2BE2 CAD Model

Description

The 8161SHAV2BE2 is a SPDT pushbutton switch from C&K.

  • Switch Type: Pushbutton
  • Switch Function: SPDT
  • Actuator Type: Round Button
  • Actuator Length: 3mm
  • Contact Rating: 0.4VA (AC/DC)
  • Voltage Rating: 20V
  • Panel Cutout Dimension: Circular-6.35mm Dia
  • Mounting Type: Through-Hole
  • Sealing: Epoxy Sealed
  • Operating Temperature: -30°C to 65°C
  • Applications: Audio/Visual, Computers and Peripherals, Medical Equipment
