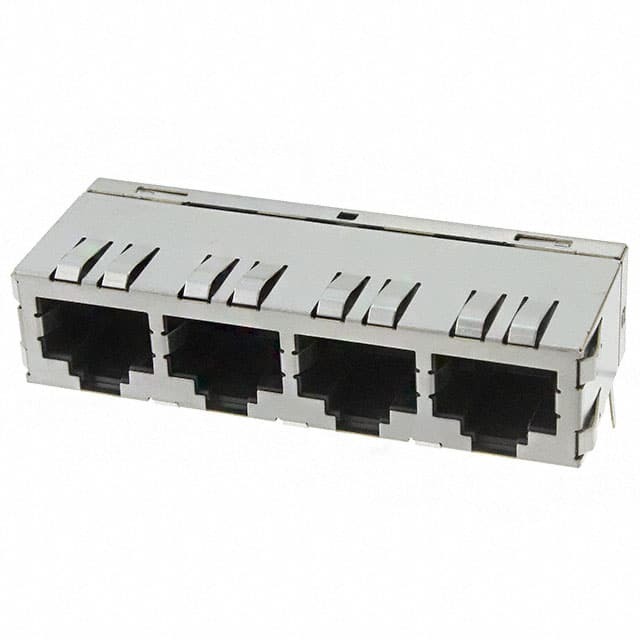

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr TE Connectivity
Package Tray
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 4
Number of Rows 1
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Shielding Shielded, EMI Finger
Ratings Cat5
Features Board Guide
LED Color Does Not Contain LED
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5406281
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855960-5406281-3
Ultra Librarian 3D Model Ultra Librarian 5406281-3 CAD Model

Description

The TE Connectivity 855960-5406281-3 is a modular connector jack designed for use in electronic devices.

  • Orientation: 90-Degree Angle (Right)
  • Number of Positions/Contacts: 8
  • Connector Type: 8p8c (RJ45, Ethernet)
  • Shielding: EMI Finger
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Housing Material: Polyamide (PA) and Nylon
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
