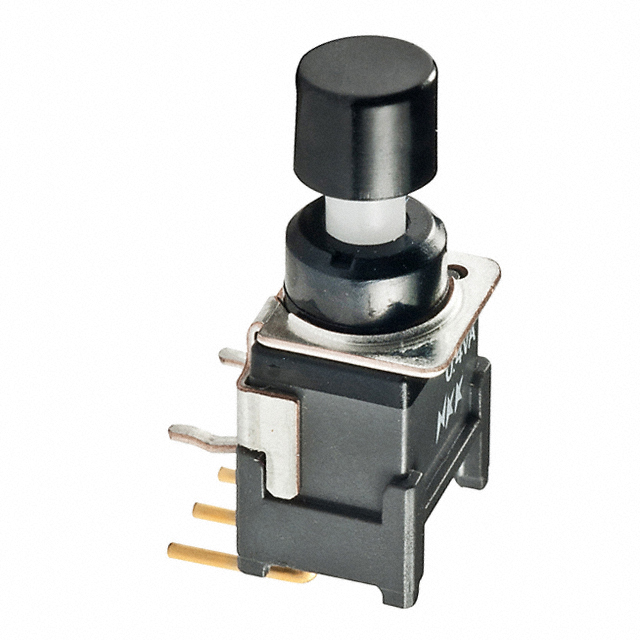

BB15AH-FA NKK Switches – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BB15AH-FA

Part No BB15AH-FA
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesPushbutton Switches
Mfr NKK Switches
Series BB
Packaging Tray
Part Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Black
Termination Style PC Pin
Features Antistatic
Operating Temperature -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number BB15AH
Ultra Librarian 3D Model Ultra Librarian BB15AH-FA CAD Model
