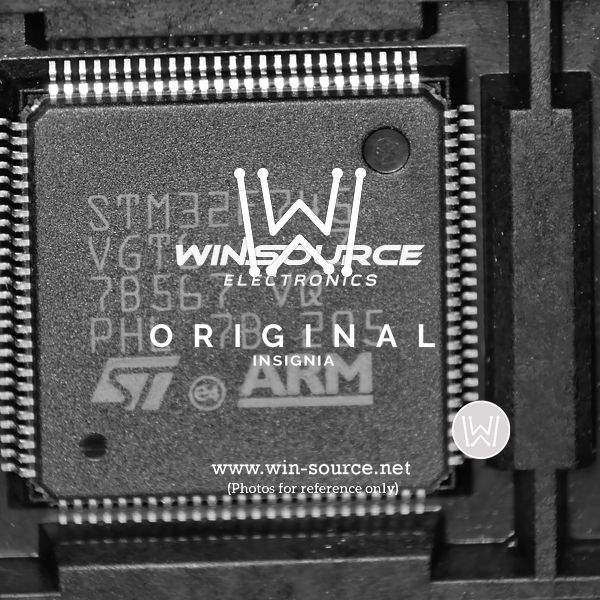

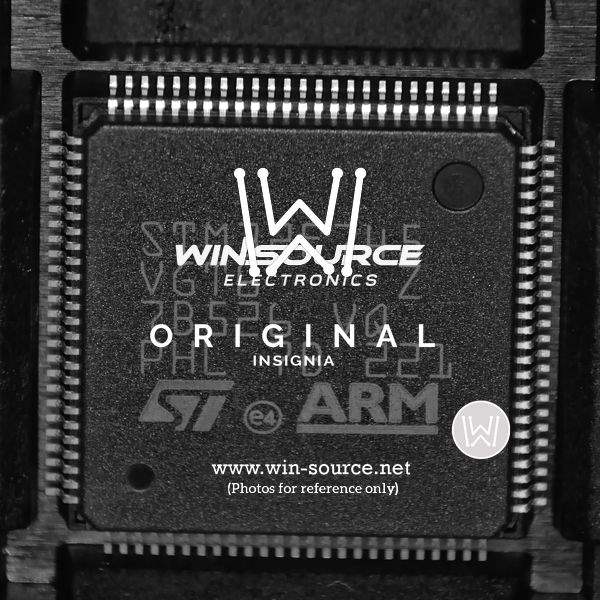

The STM32F745VGT6 is a state-of-the-art microcontroller unit (MCU) from STMicroelectronics, designed for high-performance embedded applications. It is part of the STM32F7 series, which are based on the high-efficiency ARM Cortex-M7 32-bit RISC core operating at up to 216 MHz frequency. The MCU boasts a floating point unit (FPU) which supports all ARM single-precision data-processing instructions and data types, significantly enhancing the computing ability for math-intensive operations.
This MCU is equipped with a range of enhanced I/Os and peripherals, making it ideal for a wide array of applications, including industrial control, motor drives, medical equipment, and IoT devices. It comes with a memory range that is well-suited for complex tasks, featuring up to 1 Mbyte of Flash memory and up to 320 Kbytes of SRAM, plus 16 Kbytes of data and instruction caches.
One of the standout features of the STM32F745VGT6 is its rich set of integrated peripherals. It includes advanced 16-bit timers, as well as standard and advanced communication interfaces: up to four I2Cs, six SPIs, three USARTs, two UARTs, two CANs, and one SAI (Serial Audio Interface). These interfaces allow for flexible connection to various modules and devices, facilitating a wide range of functionality and expansion options.
The device also supports high-quality audio through an S/PDIF RX interface and has dual I2S interfaces. It features a full-speed USB OTG as a device/host and a high-speed USB OTG with PHY as a device/host/OTG. The MCU's LCD-TFT controller makes it an excellent choice for applications with a user interface, supporting up to XGA resolution.
For security and system integrity, the STM32F745VGT6 includes a true random number generator and CRC calculation unit, as well as a memory protection unit (MPU) which enhances the application's security. The MCU's flexible memory controller supports Compact Flash, SRAM, PSRAM, NOR, and NAND memories.
Developers can take advantage of the extensive development ecosystem for the STM32 series, including IDEs, libraries, and the STMicroelectronics development environment, to streamline the development process. With its robust feature set and high-performance capabilities, the STM32F745VGT6 is an excellent choice for demanding embedded systems that require speed, efficiency, and a wide range of peripheral interfaces.
