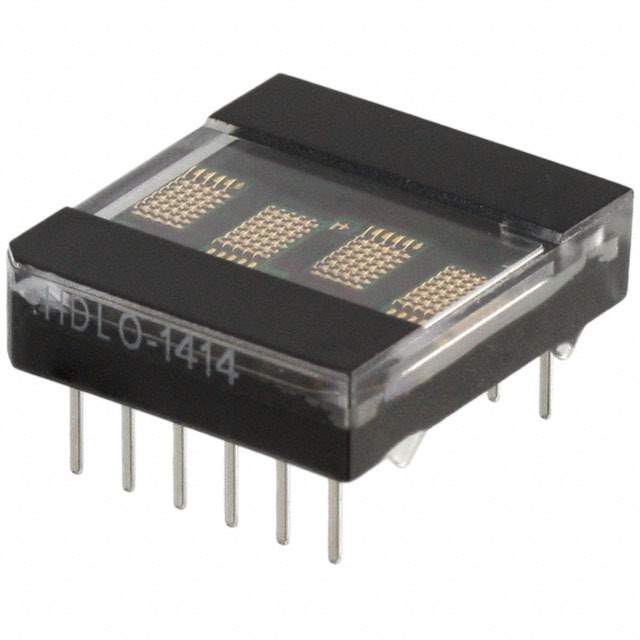

HDLO-1414 Real Image
Same model may have multiple batches, images only for reference.

HDLO-1414

Part No HDLO-1414
Manufacturer Broadcom Limited
Catalog Display Modules - LED Dot Matrix and Cluster
Description DISPLAY 5X7 0.15" 4CHAR RED
Datasheet
HDLO-1414 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 23 Weeks
Features Dot Matrix Display Module 5 x 7 - Red - 7-Bit ASCII 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm)
Manufacturer Broadcom Limited
Series HDLx-1414
Package Tube
Family Name HDLO-1414
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number HDLO-1414-ND, 516-2393-5, HDLO1414
Quantity per package 25
Popularity High
Supply and Demand Status Balance
Win Source Part Number 920098-HDLO-1414
Ultra Librarian 3D Model Ultra Librarian HDLO-1414 CAD Model

Description

The HDLO-1414 is a dot matrix display module from Broadcom Limited.

  • Series: HDLx-1414
  • Packaging: Tube
  • Display Type: 5 x 7 red dot matrix display
  • Compatibility: 7-bit ASCII compatible
  • Dimensions: 0.70" L x 0.79" W x 0.24" H (17.66mm x 20.12mm x 6.10mm)
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 23 weeks
  • MSL Level: 1 (unlimited)
  • Quantity per Package: 25
