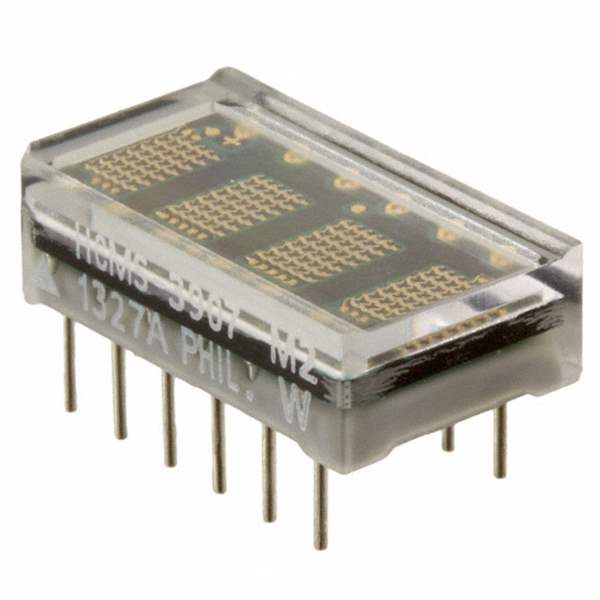

HCMS-3904 Broadcom Limited
Same model may have multiple batches, images only for reference.

HCMS-3904

Part No HCMS-3904
Manufacturer Broadcom Limited
Catalog Display Modules - LED Dot Matrix and Cluster
Description LED DISPLAY 5X7 4CHAR 3.8MM ORN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Dot Matrix and Cluster
Mfr Broadcom Limited
Series HCMS-39xx
Package Tube
Product Status Active
Millicandela Rating 128µcd
Size / Dimension 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm)
Color Orange
Configuration 5 x 7
Interface Serial
Base Product Number HCMS-3904
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Win Source Part Number 814002-HCMS-3904
Ultra Librarian 3D Model Ultra Librarian HCMS-3904 CAD Model

Description

The LED Dot Matrix and Cluster with Win Source Part Number 814002-HCMS-3904 is a versatile optoelectronic component suitable for various applications. It belongs to the Optoelectronics category and is part of the HCMS-39xx series.

  • Series: HCMS-39xx
  • Color: Orange
  • Package Type: Tube
  • Size Dimensions: 0.70" L x 0.40" W x 0.20" H (17.80mm x 10.20mm x 5.10mm)
  • Configuration: 5 x 7
  • Interface: Serial
  • Millicandela Rating: 128μcd
  • Manufacturer: Broadcom Limited
  • Product Status: Active
