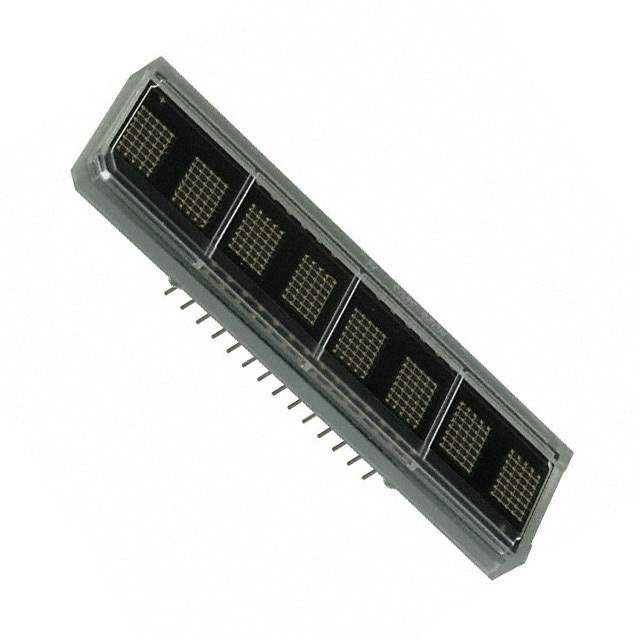

HDSP-2503 Real Image
Same model may have multiple batches, images only for reference.

HDSP-2503

Part No HDSP-2503
Manufacturer Broadcom Limited
Catalog Display Modules - LED Dot Matrix and Cluster
Description Eight Character 5 mm and 7 mm Smart Alphanumeric Displays | LED DISPLAY 5X7 8CHAR 7MM GREEN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Millicandela Rating 7.5mcd
Parts Dimension 2.79" L x 0.76" W x 0.26" H (70.87mm x 19.41mm x 6.60mm)
Color Green
Configuration 5 x 7
Interface Parallel, 8-Bit
Manufacturer Pack Quantity 5
MSL Level 1 (Unlimited)
Win Source Part Number 1179722-HDSP-2503
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-2503 CAD Model

Description

The HDSP-2503 is a green optoelectronic component manufactured by Broadcom Limited.

  • Configuration: 5 x 7
  • Interface: parallel, 8-bit
  • Millicandela Rating: 7.5mcd
  • Applications: optoelectronics applications
  • Popularity: medium
  • Manufacturer Pack Quantity: 5
  • MSL Level: 1 (Unlimited)
  • Dimensions: 2.79" L x 0.76" W x 0.26" H (70.87mm x 19.41mm x 6.60mm)
