Same model may have multiple batches, images only for reference.

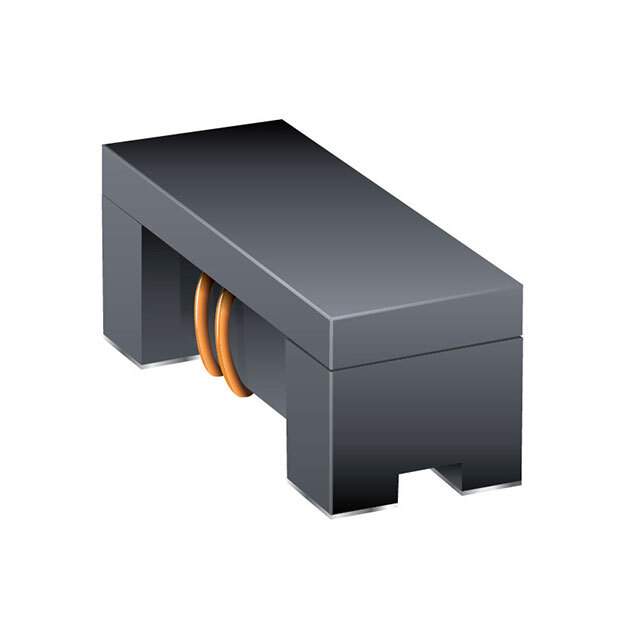

SRF2012-300Y Real Image
Same model may have multiple batches, images only for reference.

SRF2012-300Y

Part No SRF2012-300Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF2012
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Number of Lines 2
Impedance @ Frequency 30 Ohms @ 100 MHz
Current Rating (Max) 450mA
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.081" L x 0.049" W (2.05mm x 1.25mm)
Height (Max) 0.057" (1.45mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF2012
Other Names SRF2012300Y,-SRF2012-300Y,-SRF2012-300Y,SRF2012-300YTR,SRF2012-300Y,SRF2012-300YCT,-SRF2012-300YTR,-SRF2012-300YCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277147-SRF2012-300Y
Ultra Librarian 3D Model Ultra Librarian SRF2012-300Y CAD Model

Description

The SRF2012 series common mode choke filter is an excellent choice for use in a variety of electronic applications.

  • Impedance: 30 Ohms @ 100 MHz
  • DC Resistance: 200mOhm max
  • Current Rating: 450mA
  • Packaging: Tape and reel or cut tape packaging
  • Height: 0.057"
  • Package/Case: Horizontal, 4 PC pad package/case
  • Manufacturer: Bourns Inc
  • REACH: Unaffected
  • Operating Temperature Range: -55°C to 125°C
  • Status: Obsolete
