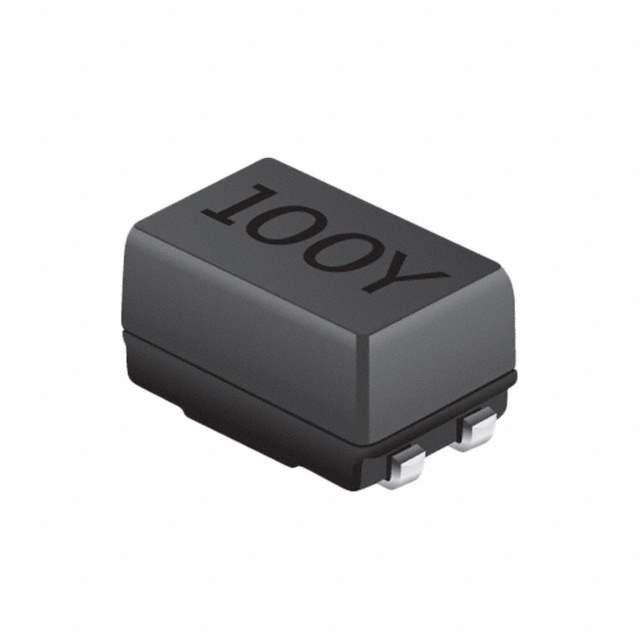

SRF0905A-652Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905A-652Y

Part No SRF0905A-652Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF0905A-652Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF0905A
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 5 kOhms @ 300 kHz
Inductance @ Frequency 6.5 mH @ 100 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 1.05Ohm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 105°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.248" (6.30mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF0905A
Other Names SRF0905A-652YCT,SRF0905A-652YDKR,SRF0905A-652YTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1277160-SRF0905A-652Y
Ultra Librarian 3D Model Ultra Librarian SRF0905A-652Y CAD Model

Description

The Bourns Inc. SRF0905A-652Y is a common mode choke that belongs to the Filters category.

  • Category: Filters
  • Filter Application: Signal line filter
  • Impedance @ Frequency: 5 kOhms @ 300 kHz
  • Inductance @ Frequency: 6.5 mH @ 100 kHz
  • DC Resistance: 1.05 Ohm
  • Voltage Rating (Max): 80V
  • Package Type: Horizontal, 4 PC pad
  • Standard Package: 1,000
