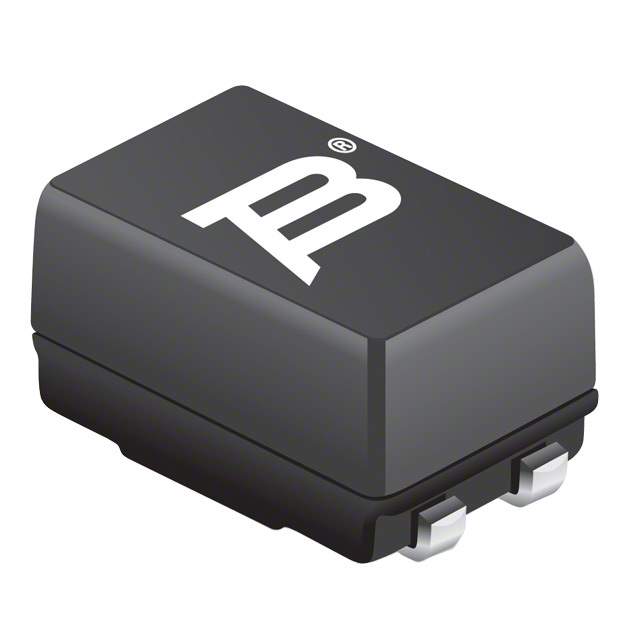

SRF0905-501Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-501Y

Part No SRF0905-501Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Inductance range: 10 to 6500 μH
Datasheet
SRF0905-501Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhm @ 1MHz
Inductance @ Frequency 500μH @ 100kHz
Current Rating (Maximum) 1A
DC Resistance (DCR) (Maximum) 150 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Size 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1258744-SRF0905-501Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SRF0905-501Y CAD Model

Description

The SRF0905-501Y by Bourns Inc. is a signal line filter with an operating temperature range of -40°C to 105°C.

  • Voltage Rating: 80V DC
  • Maximum Current Rating: 1A
  • Filter Type: Signal Line
  • Package: Horizontal, 4 PC pad
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Configuration: 2-line
  • Impedance @ 1MHz: 1 kOhm
  • Inductance @ 100kHz: 500μH
  • Series: SRF0905
  • Application: Power management
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2022
  • Supply and Demand Status: Balanced
