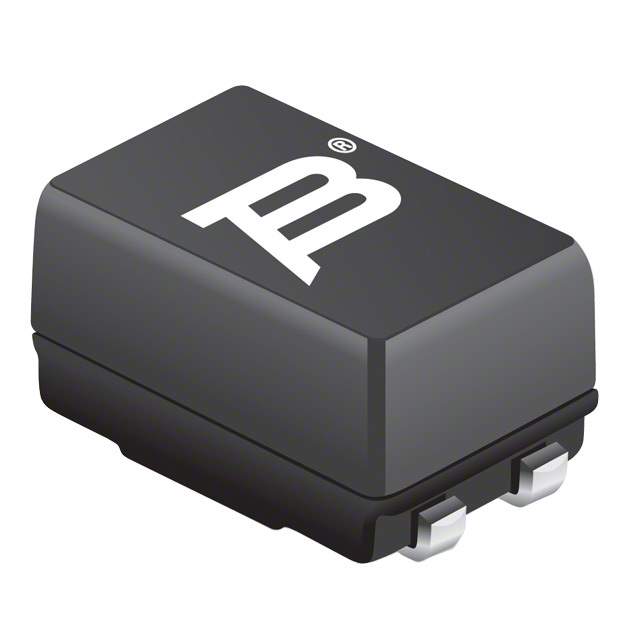

SRF0905-400Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-400Y

Part No SRF0905-400Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 40UH 900MA 2LN 800 OHM SMD / Common Mode Chokes Dual 40uH 800Ohm 1kHz 0.9A 0.25Ohm DCR SMD T/R
Datasheet
SRF0905-400Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 800 Ohm @ 20MHz
Inductance @ Frequency 40μH @ 1kHz
Current Rating (Maximum) 900mA
DC Resistance (DCR) (Maximum) 250 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 795395-SRF0905-400Y
Popularity Medium
Supply and Demand Status Balance
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SRF0905-400Y CAD Model

Description

The Bourns Inc. SRF0905-400Y is a signal line filter that comes in a reel package from Bourns Inc.

  • Voltage Rating: 80V DC
  • Current: 900mA maximum
  • Series: SRF0905
  • Popularity: medium
  • RoHS Compliant: Yes
  • Halogen-Free: Yes
  • Dimensions: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Maximum Height: 0.209" (5.30mm)
  • Introduction Date: May 20, 2009
  • Estimated EOL Date: 2025
