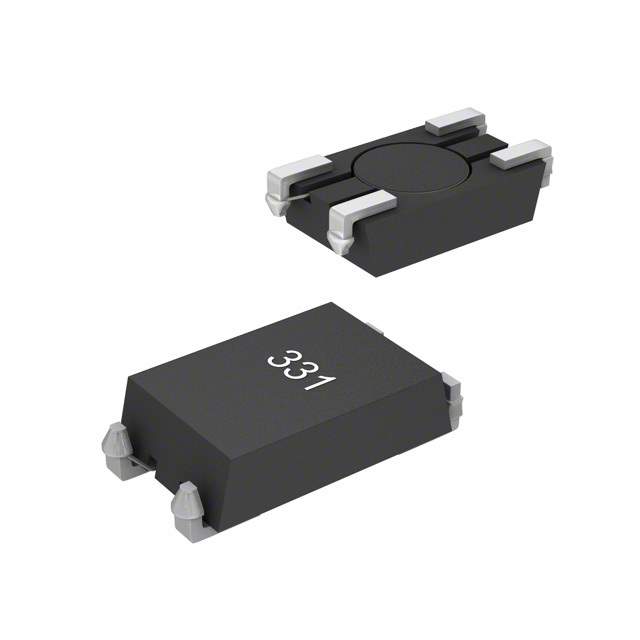

SRF0602-101Y Real Image
Same model may have multiple batches, images only for reference.

SRF0602-101Y

Part No SRF0602-101Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF0602-101Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF0602
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 260 Ohms @ 3 MHz
Inductance @ Frequency 100 µH @ 10 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 220mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) 0.071" (1.80mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF0602
Other Names SRF0602-101YCT,SRF0602-101Y,-SRF0602-101YCT,-SRF0602-101YTR,SRF0602-101YTR,SRF0602-101YDKR,-SRF0602-101Y,SRF0602101Y,-SRF0602-101Y
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277166-SRF0602-101Y
Ultra Librarian 3D Model Ultra Librarian SRF0602-101Y CAD Model

Description

The Bourns Inc. SRF0602-101Y Common Mode Choke is a signal line filter designed to suppress common mode noise.

  • Filter Application: Signal line filter
  • Impedance @ Frequency: 260 Ohms @ 3 MHz
  • Inductance @ Frequency: 100 µH @ 10 kHz
  • DC Resistance: 220mOhm
  • Height: 0.071 inches (1.80mm)
  • Packaging: Tape and reel package of 1,000
  • Package: Horizontal with 4 PC pads
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
