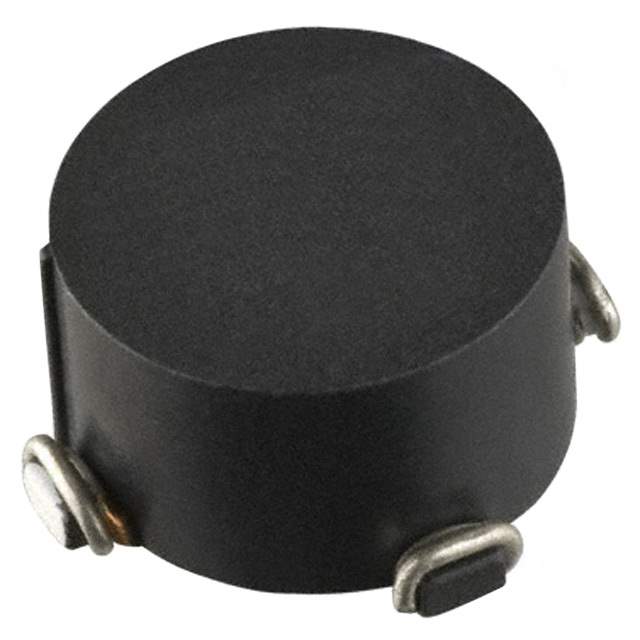

PM3700-40-RC Real Image
Same model may have multiple batches, images only for reference.

PM3700-40-RC

Part No PM3700-40-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 1MH 4A 2LN SMD / 1 mH @ 1 kHz 2 Line Common Mode Choke Surface Mount 4A DCR 20mOhm
Datasheet
PM3700-40-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series PM3700
Package Tape & Reel
Number of Lines 2
Inductance @ Frequency 1 mH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 20mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max) 0.450" (11.43mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number PM3700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names PM3700-40-RCDKR,PM3700-40-RCCT,PM3700-40-RCTR,PM370040RC
Standard Package 200
Win Source Part Number 1155490-PM3700-40-RC
Ultra Librarian 3D Model Ultra Librarian PM3700-40-RC CAD Model

Description

The PM3700-40-RC is a common mode choke from Bourns Inc. that is designed to be used in various electronic applications.

  • Current Rating: 4A (Max)
  • Packaging: Tape and Reel
  • Standard Package: 200
  • Seated Height: 0.450 inches (11.43mm) (Max)
  • Lines: 2
  • Inductance: 1 mH @ 1 kHz
  • DC Resistance (DCR): 20mOhm (Max)
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.850 inches L x 0.850 inches W (21.60mm x 21.60mm)
