Same model may have multiple batches, images only for reference.

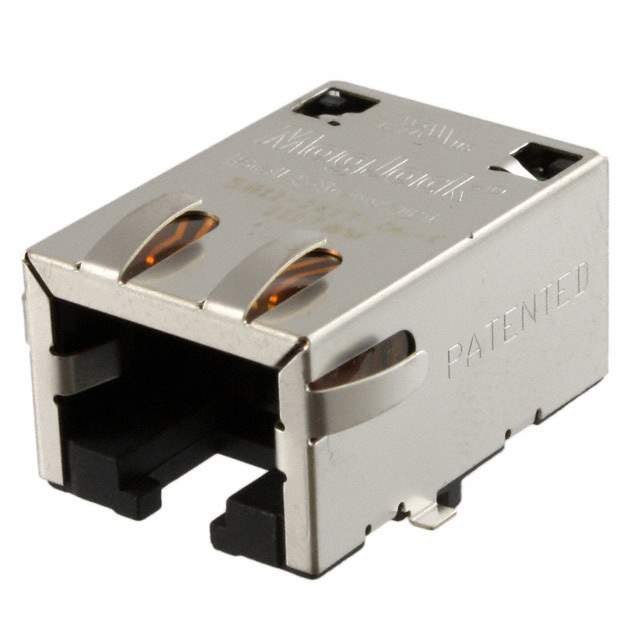

S811-1X1T-06-F Real Image
Same model may have multiple batches, images only for reference.

S811-1X1T-06-F

Part No S811-1X1T-06-F
Manufacturer Bel Fuse Inc.
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T SMD
Datasheet
S811-1X1T-06-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 29 Weeks
Features 1 Port RJ45Surface Mount 10/100 Base-T, AutoMDIX
Manufacturer Bel Fuse Inc.
Series MagJack®
Package Reel - TR
Operating Temperature Range 0°C ~ 70°C
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number S8111X1T06-F, Q8289025Z, 507-1456-6, 507-1456-1, 507-1456-2, S8111X1T06F
Quantity per package 175
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893180-S811-1X1T-06-F
Ultra Librarian 3D Model Ultra Librarian S811-1X1T-06-F CAD Model

Description

The Bel Fuse Inc. 893180-S811-1X1T-06-F is a surface mount 10/100 Base-T, AutoMDIX 1 port RJ45 magjack.

  • Category: connectors category electronic devices
  • Operating Temperature Range: 0°C to 70°C
  • Package: reel - TR package
  • Mounting Style: surface mount
  • Popularity: high
  • Supply and Demand Status: balanced
  • REACH: compliant with REACH
  • ECCN: EAR99
  • Quantity: 175 per package
  • HTSUS: 8536.69.4040
