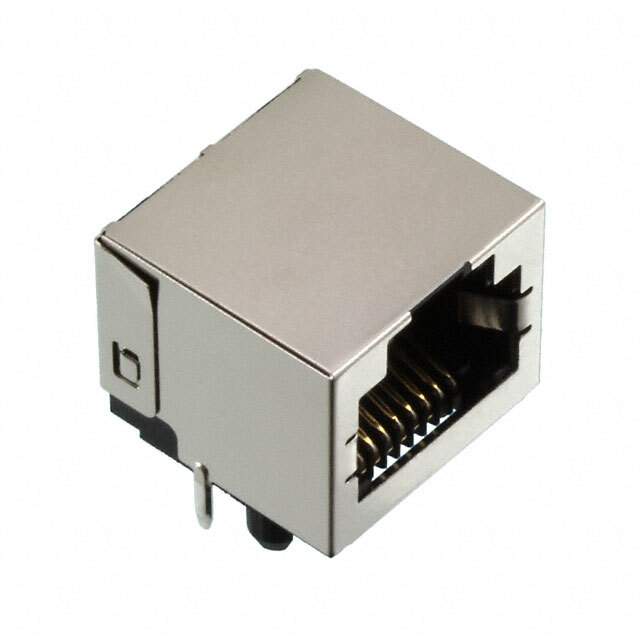

43860-0025 Real Image
Same model may have multiple batches, images only for reference.

43860-0025

Part No 43860-0025
Manufacturer Molex, LLC
Catalog Modular Connectors
Description Modular Jack, Right-Angle, Low Profile, Inverted, Shielded, No Panel Grounding Tabs, 8/8, Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals UL
Color Black
Connector Type RJ45
Contact Material Brass, Bronze
Contact Plating Gold
Country of Origin US
Current Rating 1.5 A
Depth 15.75 mm
Flammability Rating UL94 V-0
Gender Female
Housing Color Black
Housing Material Thermoplastic
Length 16.38 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 8
Number of Ports 1
Number of Positions 8
Number of Positions Loaded 8
Orientation Right Angle
Pitch 2.04 mm
Plating Tin
RoHS Compliant
Shielding Shielded
Termination Through Hole
Voltage Rating (AC) 150 V
Voltage Rating (DC) 150 V
Width 13.53 mm
Win Source Part Number 1017125-43860-0025
Categories Modular Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43860-0025 CAD Model

Description

The Molex LLC electronic component is a right-angle RJ45 connector with 8 positions and a pitch of 2.04mm.

  • Connector Type: RJ45
  • Orientation: Right Angle
  • Positions: 8
  • Pitch: 2.04mm
  • Loaded Positions: 8
  • Termination: Through-Hole
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • Current Rating: 1.5A
  • Voltage Rating: 150V
  • Approvals: UL
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
