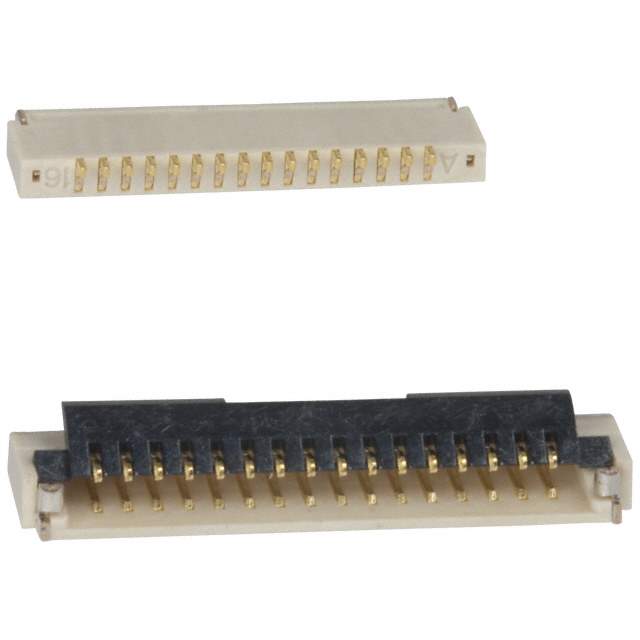

The FH19SC-16S-0.5SH(05) is a Flat Flex Cable (FFC) connector manufactured by Hirose Electric Co. Ltd. It is designed for applications requiring a reliable and compact connection between FFC cables and printed circuit boards (PCBs). This connector is part of Hirose's FH series, which is known for its space-saving design and robust performance in various electronic devices.

Applications:

• Portable electronic devices: Used in smartphones, tablets, and digital cameras to connect displays, touchscreens, and other internal components.
• Laptop computers: Connects LCD panels, keyboards, and trackpads to the mainboard.
• Medical equipment: Integrated in diagnostic devices, monitoring systems, and imaging equipment for reliable data transmission.
• Automotive electronics: Used in car navigation systems, dashboard displays, and infotainment systems to connect various modules.
• Industrial automation: Applied in control panels, robotic arms, and other automated machinery requiring flexible and reliable connections.

Features:

• 16-position connector: Provides a compact solution for connecting multiple signals through an FFC.
• 0.5mm pitch: Enables high-density connections while minimizing space requirements on the PCB.
• Surface Mount Technology (SMT): Designed for automated assembly processes, enhancing manufacturing efficiency.
• Top contact: FFC is inserted from the top, facilitating easy assembly and inspection.
• Secure locking mechanism: Ensures a reliable and stable connection, even under vibration and mechanical stress.
• RoHS compliant: Meets environmental standards, ensuring compliance with regulations on hazardous substances.

Benefits:

• Space Saving: Compact design allows for integration into densely populated circuit boards.
• Easy Assembly: SMT compatibility and top contact configuration streamline the assembly process.
• Reliable Connection: Secure locking mechanism ensures stable signal transmission, reducing the risk of failures.
• Design Flexibility: Suitable for a wide range of applications due to its versatile design.
• Cost-Effective: Streamlined manufacturing and reliable performance reduce overall costs.
• Environmentally Friendly: RoHS compliance ensures adherence to environmental regulations.

Additional Details:

The FH19SC-16S-0.5SH(05) connector typically features a durable housing material that can withstand high temperatures during soldering processes. Its compact dimensions make it ideal for applications where PCB space is limited. The secure locking mechanism provides tactile feedback, confirming that the FFC is properly inserted. The connector's design also facilitates easy visual inspection, ensuring proper alignment and connection. This connector is designed to meet stringent industry standards, providing high-quality and reliable connections for a wide range of electronic applications.
