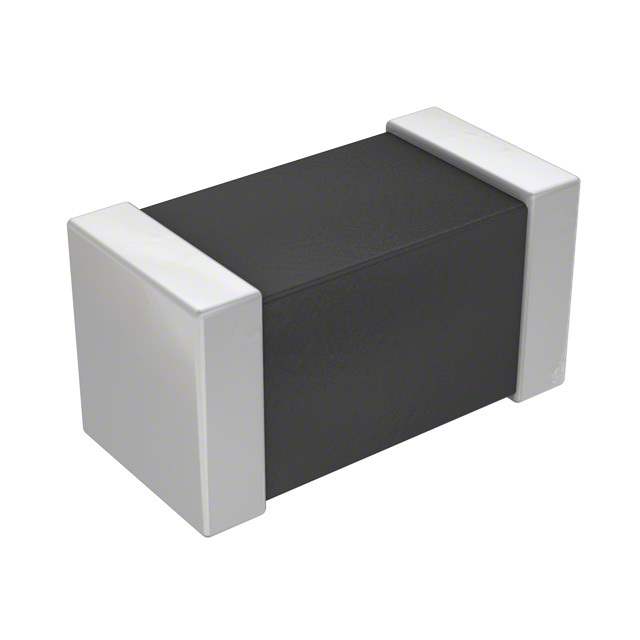

VC120648D101RP Real Image
Same model may have multiple batches, images only for reference.

VC120648D101RP

Part No VC120648D101RP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 62V 100A 1206
Datasheet
VC120648D101RP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr AVX Corp/Kyocera Corp
Series TransGuard®
Package Tape & Reel
Product Status Active
Maximum AC Volts 34 V
Maximum DC Volts 48 V
Varistor Voltage (Min) 55.8 V
Varistor Voltage (Typ) 62 V
Varistor Voltage (Max) 68.2 V
Current - Surge 100 A
Energy 0.4J
Number of Circuits 1
Capacitance @ Frequency 225 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 397530-VC120648D101RP
Ultra Librarian 3D Model Ultra Librarian VC120648D101RP CAD Model

Description

The 397530-VC120648D101RP is a varistor, also known as a transient voltage suppressor (TVS), from the TransGuard® series by AVX Corp/Kyocera Corp.

  • Manufacturer: AVX Corp/Kyocera Corp
  • Series: TransGuard®
  • Capacitance: 225 pF @ 1 kHz
  • Varistor Voltage Range: 55.8 V to 68.2 V
  • Surge Current: 100 A
  • Maximum AC Voltage: 34 V
  • Maximum DC Voltage: 48 V
  • Energy Rating: 0.4J
  • Mounting Type: Surface Mountable
  • Package: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 125°C (TA)
