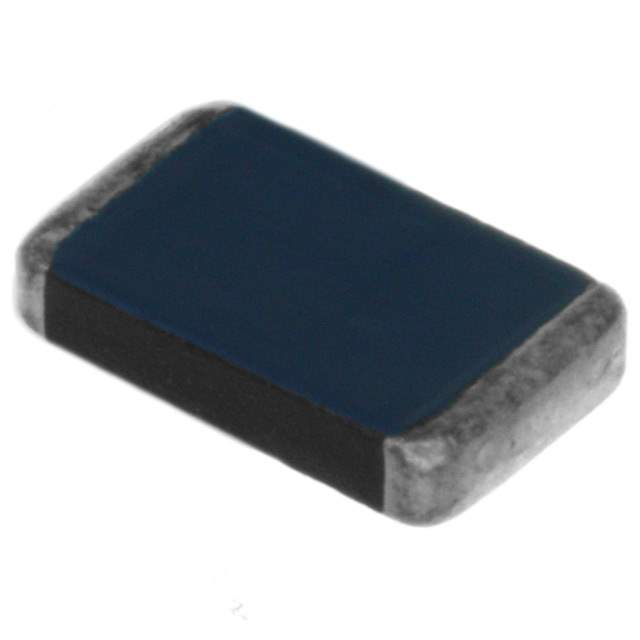

V150CH8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Tape and Reel
Maximum AC Volts 95V
Maximum DC Volts 127V
Varistor Voltage (Minimum) 135V
Varistor Voltage 150V
Varistor Voltage (Maximum) 165V
Current - Surge 250A
Energy 3.0J
Capacitance at Frequency 250pF at 1MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMT, MLCV
Manufacturer Package 2-SMD, No Lead
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Win Source Part Number 1278790-V150CH8
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian V150CH8 CAD Model

Description

The Littelfuse Inc. V150CH8 is an electronic component that is used in circuit protection.

  • Mounting: surface
  • Compatibility: MLCV applications.
  • Maximum AC Voltage: 95V
  • Maximum DC Voltage: 127V
  • Energy: 3.0J
  • Varistor Voltage: 150V
  • Capacitance @ 1MHz: 250pF
  • Temperature Range: -55°C to 125°C
  • Varistor Voltage Range: 135V to 165V.
