Same model may have multiple batches, images only for reference.

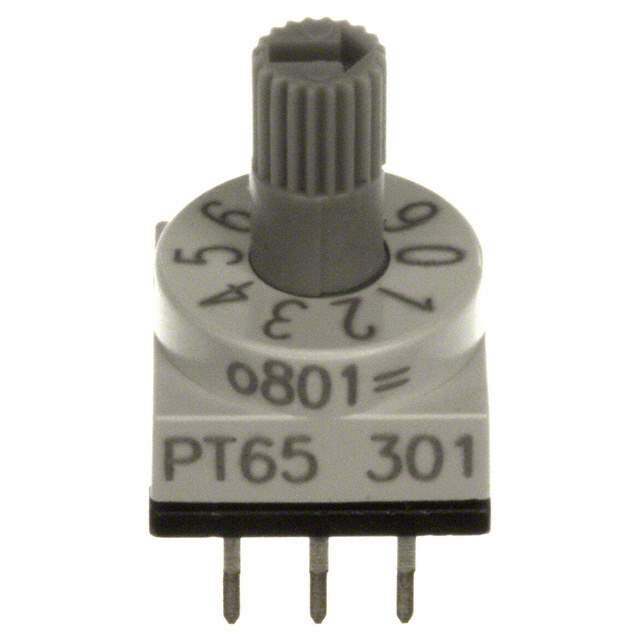

PT65301 Real Image
Same model may have multiple batches, images only for reference.

PT65301

Part No PT65301
Manufacturer Apem Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 150MA 24V / Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 150mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr APEM Inc.
Series PT65
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 24VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.543" (13.80mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Body Material Thermoplastic
Length 0.394" (10.00mm)
Mechanical Life 10,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names PT65301-ND,679-1928
Standard Package 50
Win Source Part Number 1014217-PT65301
Ultra Librarian 3D Model Ultra Librarian PT65301 CAD Model

Description

APEM Inc. presents the PT65301, a rotary with shaft DIP switch with 10 positions.

  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Features: Sealed with flux protection, washable, raised actuator level
  • Voltage Rating: 24VDC
  • Current Rating: 150mA
  • Mechanical Life: 10,000 cycles
  • Mounting Type: Through-hole
