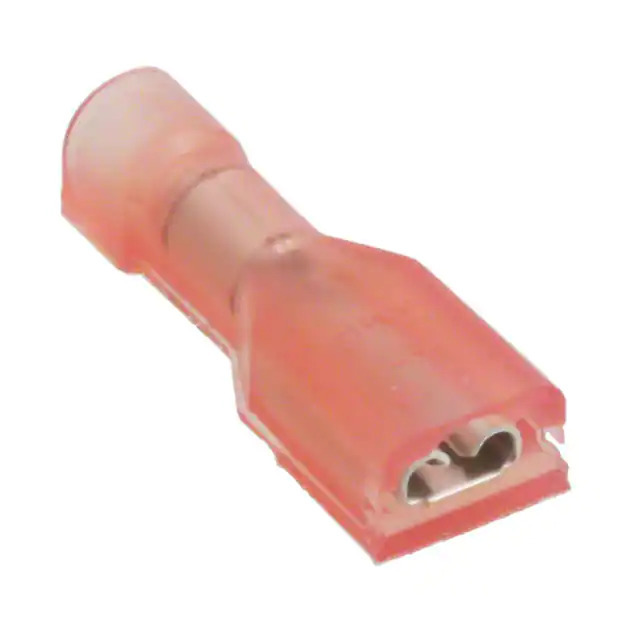

2-520084-2 TE Connectivity
Same model may have multiple batches, images only for reference.

2-520084-2

Part No 2-520084-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 18-22AWG 0.110 / 0.110" (2.79mm), 0.125" (3.18mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall 0.735" (18.67mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" (3.05mm)
Base Product Number 520084
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365017-2-520084-2
Ultra Librarian 3D Model Ultra Librarian 2-520084-2 CAD Model

Description

The 1365017-2-520084-2 is a Quick Disconnect Connector from TE Connectivity AMP Connectors.

  • Series: Ultra-Fast
  • Wire Gauge: 18-22 AWG
  • Terminal Gender: Female
  • Insulation Color: Red
  • Overall Length: 0.735"
  • Termination: Crimp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Terminal Type: Standard
  • Tab Width: 0.110" and 0.125"
  • Tab Thickness: 0.020"
  • Insulation Diameter: 0.120"
  • Insulation: Fully insulated
  • Status: Active
