Analog Devices Inc. Presents the MAX22196ATJ+ Octal Digital Input Device

The MAX22196ATJ+ is a state-of-the-art octal digital input device meticulously designed by Analog Devices Inc. to cater to the demanding requirements of industrial digital input modules and systems. This robust component is specifically engineered to interface with 24V digital input signals commonly found in programmable logic controllers (PLCs), distributed control systems (DCS), and other factory automation equipment.

Key Features and Benefits

• High Integration: The MAX22196ATJ+ integrates eight channels of digital inputs, which simplifies design and reduces board space.
• Field Side Protection: It offers extensive protection features on the field side, including reverse-voltage protection, overvoltage protection up to +40V, and overtemperature protection, ensuring reliable operation in harsh industrial environments.
• High-Speed Operation: With fast propagation delays, this device is capable of high-speed signal processing, making it suitable for time-critical applications.
• Diagnostic Capabilities: Built-in diagnostic functions provide feedback on channel status, aiding in system monitoring and maintenance.
• Flexible Power Supply: The device operates with a wide supply voltage range, accommodating various industrial applications.
• Robust Isolation: The MAX22196ATJ+ is designed with integrated isolation, providing safety and noise immunity between the field side and the logic side.

Applications

The versatility of the MAX22196ATJ+ makes it an ideal choice for a variety of applications within the industrial sector. It is particularly well-suited for:

• PLC digital input modules
• Industrial I/O modules
• DCS modules
• Industrial automation and control systems

Package and Environmental Compliance

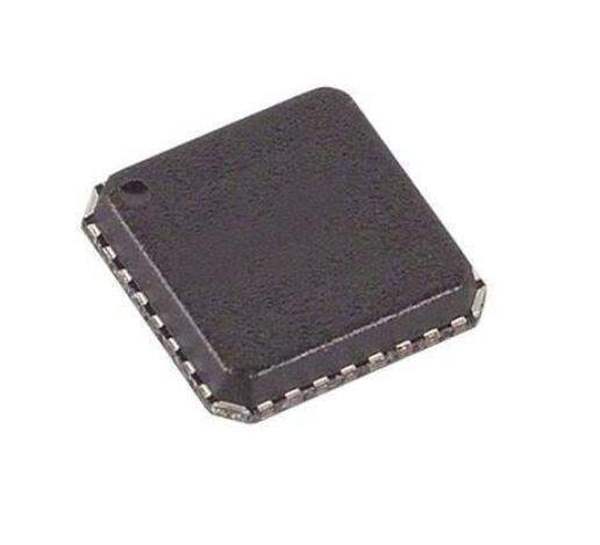

The MAX22196ATJ+ is offered in a compact TQFN-32 package that is RoHS compliant, adhering to environmental standards. Its package is optimized for thermal performance and space-saving on PCBs, making it an excellent choice for dense industrial designs.

Analog Devices Inc. ensures that the MAX22196ATJ+ meets the rigorous demands of industrial applications by providing a robust, reliable, and high-performance digital input solution. Its integration of multiple channels with advanced protection and diagnostic features streamlines design and enhances system reliability, making it a valuable component in any industrial control system.
