Product Overview: HMC869LC5 - Analog Devices Inc.

The HMC869LC5 is a high-performance, wideband Direct Quadrature Modulator from Analog Devices Inc., crafted to meet the rigorous demands of advanced RF and microwave communication systems. This versatile component is an ideal choice for applications in wireless infrastructure, broadband, and software-defined radio, thanks to its exceptional linearity and broad frequency range.

Operating within the frequency range of 6 GHz to 10 GHz, the HMC869LC5 provides users with a flexible solution for upconversion in complex modulation schemes. It integrates a double-balanced mixer, LO amplifier, and RF balun, which simplifies design and conserves valuable board space. The modulator's high output IP3 (third-order intercept point) ensures excellent dynamic range, making it well-suited for high-capacity QAM (quadrature amplitude modulation) applications.

The HMC869LC5 boasts a remarkable LO to RF isolation, reducing the need for additional filtering and minimizing potential interference. Its single-ended RF and LO ports are designed for ease of use, and the differential I/Q inputs accommodate a wide range of drive levels, providing designers with greater flexibility in system architecture.

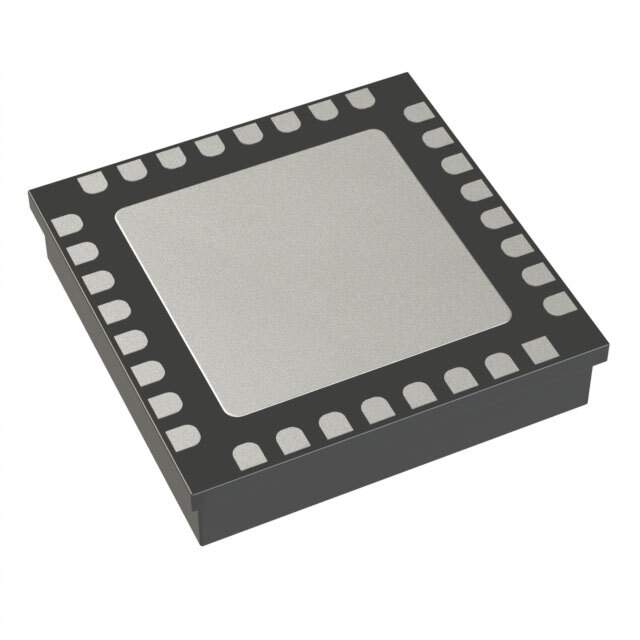

Analog Devices Inc. has engineered the HMC869LC5 with an eye on power efficiency. Its low power consumption makes it an environmentally conscious choice that can help reduce operational costs in high-volume deployments. The modulator comes housed in a compact 5x5 mm SMT package, which is not only space-efficient but also compatible with standard surface-mount processes, facilitating easy integration into existing and new designs.

Key features of the HMC869LC5 include:

• Frequency Range: 6 GHz to 10 GHz
• High Output IP3: Excellent dynamic range for complex modulations
• High LO to RF Isolation: Minimizes interference and filtering needs
• Low Power Consumption: Energy-efficient design for sustainable operations
• Compact Surface-Mount Package: Simplifies integration and saves space

In summary, the HMC869LC5 from Analog Devices Inc. stands out as a superior choice for designers seeking a high-quality, wideband modulator that delivers both performance and efficiency. With its robust feature set and straightforward implementation, it represents a valuable asset in the development of cutting-edge RF systems.
