Product Overview: HMC264LC3B from Analog Devices Inc.

The HMC264LC3B is a high-performance, GaAs MMIC Double-Balanced Mixer, designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This mixer product is part of the Hittite Microwave Corporation line, which has been integrated into Analog Devices. It is a compact and versatile component, widely used in RF and microwave applications including point-to-point and point-to-multipoint radios, military and space, as well as test equipment and sensors.

This particular model operates within the frequency range of 11 to 20 GHz in the RF and LO bands, with an IF frequency range from DC to 3 GHz, making it suitable for a variety of high-frequency signal processing tasks. The HMC264LC3B is designed to provide excellent isolation between ports (LO to RF isolation of 37 dB typical), a crucial feature for preventing signal leakage and ensuring the integrity of the signal processing in complex systems.

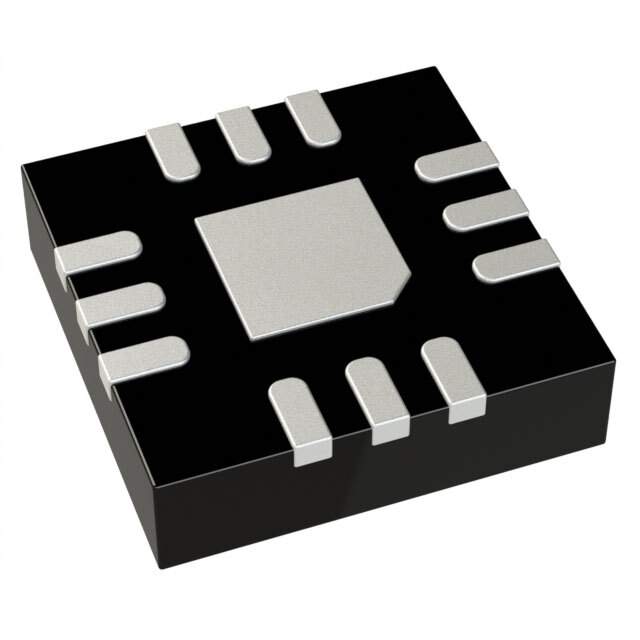

The HMC264LC3B comes in a compact 3x3 mm ceramic QFN package, which is ideal for space-constrained applications where performance cannot be compromised. The package is RoHS compliant, ensuring that it meets the latest environmental standards for electronic components. The device also boasts a wide input IP3 (Input Third-Order Intercept Point) of 25 dBm, providing good linearity and thus maintaining the fidelity of the signal through the mixing process.

The low conversion loss (9 dB typical) of the HMC264LC3B means that it efficiently converts RF signals to IF signals with minimal degradation, which is essential for maintaining signal strength and quality. Additionally, the device requires minimal external components, simplifying design and reducing the overall bill of materials for the end product.

In summary, the HMC264LC3B from Analog Devices Inc. is a robust and high-performance mixer that offers a blend of efficiency, linearity, and isolation, making it a top choice for engineers and designers working on advanced RF and microwave systems.
