EVAL-AD7291SDZ - Analog Devices Inc.

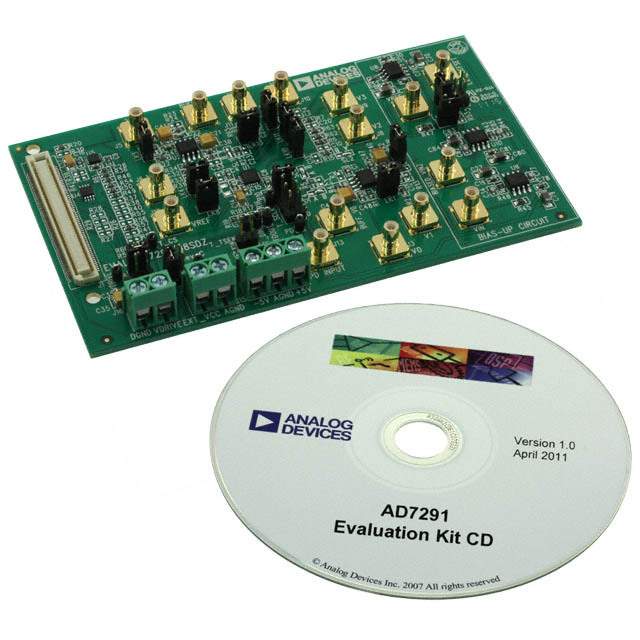

The EVAL-AD7291SDZ is a high-performance evaluation board presented by Analog Devices Inc., designed to demonstrate the capabilities of the AD7291, a low power, 12-bit analog-to-digital converter (ADC) with an integrated temperature sensor. This evaluation board offers a robust platform for engineers and designers to explore the features and performance of the AD7291 ADC in various applications.

Key Features:

• 12-Bit ADC: The board features the AD7291, which provides 12-bit resolution for precise data acquisition, making it suitable for monitoring and control systems that require high accuracy.
• Eight Single-Ended Channels: It includes eight single-ended analog input channels that allow for the monitoring of various sensors and signals simultaneously.
• Integrated Temperature Sensor: An on-chip temperature sensor adds functionality for thermal monitoring without the need for additional components.
• I2C Interface: The device communicates via an I2C-compatible serial interface, facilitating easy integration with most microcontrollers and digital systems.
• Low Power Consumption: Designed for power-sensitive applications, the AD7291 operates with a low power requirement, helping to conserve energy in portable and battery-operated devices.

Applications:

The EVAL-AD7291SDZ is ideal for a variety of applications, including:

• Industrial automation and process control
• Data acquisition systems
• Environmental monitoring
• Medical and healthcare equipment
• Instrumentation and measurement devices

Easy to Use:

The evaluation board is user-friendly, equipped with all necessary features for immediate use. It includes reference design and documentation to assist in the rapid development of prototypes and projects. Additionally, the board is supported by software tools from Analog Devices that simplify data capture and analysis.

Package Contents:

The EVAL-AD7291SDZ package typically includes:

• Evaluation Board AD7291
• Documentation and reference materials
• Software for setup and data analysis

With its comprehensive features and ease of use, the EVAL-AD7291SDZ from Analog Devices Inc. represents a valuable tool for any developer looking to leverage the AD7291 ADC's capabilities in their next project.
