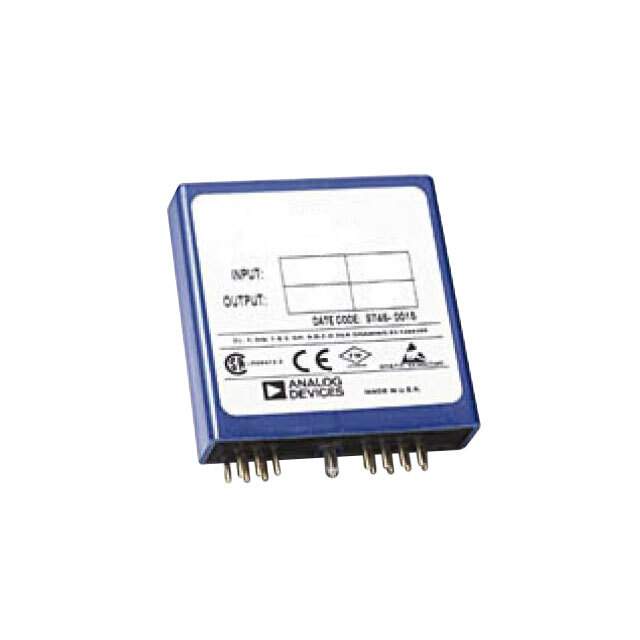

The 5B34-02 from Analog Devices Inc. is an isolated voltage input module designed to provide precision electrical isolation for high-performance industrial applications. This compact, signal conditioning module is part of the 5B Series, renowned for its superior accuracy, reliability, and ease of use.

Key Features

• Input Range: The 5B34-02 is capable of accepting input voltage ranges from 0 to +10 V, making it versatile for various monitoring and control applications.
• Isolation: It provides 1500 V RMS isolation between input, output, and power, safeguarding sensitive equipment and personnel from high-voltage transients.
• Accuracy: With a nonlinearity of less than ±0.05%, users can trust the precision of measurements and signal integrity.
• Filtering: An integral low-pass filter minimizes signal noise, ensuring clean and stable outputs.
• Output: The module delivers a well-regulated output of 0 to +5 V, compatible with a wide range of data acquisition systems and PLCs.

Applications

The 5B34-02 is ideal for industrial environments where accurate voltage measurements are crucial. It is particularly suited for process control systems, data acquisition, and instrumentation in sectors such as automotive testing, energy management, and chemical processing.

Easy Integration

This module is engineered for easy installation and integration into existing systems. Its small form factor allows it to be used in space-constrained applications, and its compatibility with the 5B Series backplanes enables rapid deployment in multi-channel configurations.

Environmental and Safety Standards

The 5B34-02 is designed to meet high environmental and safety standards, ensuring operation in harsh industrial conditions. It is built to comply with industry certifications, providing users with confidence in its performance and durability.
