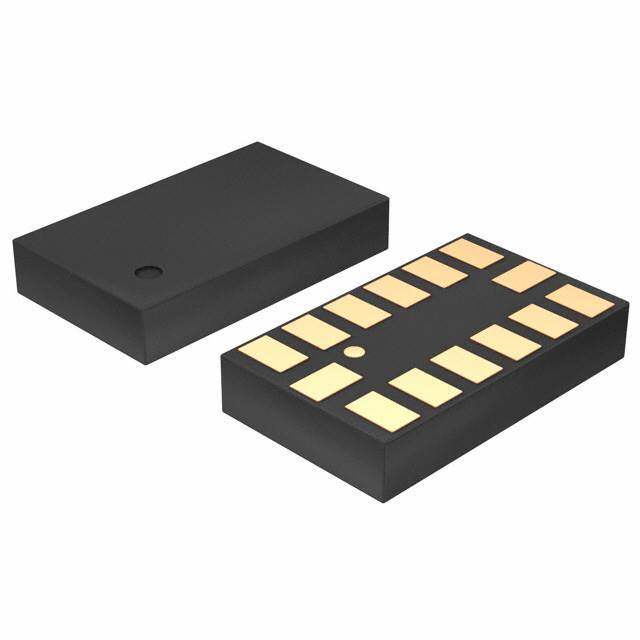

ADXL343BCCZ-RL7

Part No ADXL343BCCZ-RL7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 14LGA / Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 256 (±2g) ~ 32 (±16g)
Bandwidth 0.05Hz ~ 1.6kHz
Output Type I2C, SPI
Voltage - Supply 2V ~ 3.6V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (3x5)
Base Product Number ADXL343
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851048-ADXL343BCCZ-RL7
Ultra Librarian 3D Model Ultra Librarian ADXL343BCCZ-RL7 CAD Model

Description

ADXL343BCCZ-RL7 - High Precision Accelerometer

The ADXL343BCCZ-RL7 is a cutting-edge accelerometer module manufactured by Analog Devices Inc., a leader in high-performance analog technology. Designed to cater to a wide array of applications requiring accurate motion detection, this device is a perfect fit for both industrial and consumer products.

Key Features

  • 3-Axis Sensing: The ADXL343BCCZ-RL7 offers precise 3-axis acceleration measurement, which enables it to capture motion in three dimensions, providing a comprehensive understanding of spatial orientation and movement.
  • High Resolution: With high resolution (13-bit) measurement at up to ±16 g, this accelerometer ensures that even the slightest movements are accurately captured, making it suitable for advanced motion analysis.
  • Adjustable Range: It features user-selectable ranges of ±2 g, ±4 g, ±8 g, or ±16 g, allowing for versatility in different applications, from delicate instrumentation to robust motion dynamics.
  • Low Power Consumption: The device is optimized for low power consumption, making it ideal for battery-powered applications where efficiency is crucial.
  • Digital Output: Data from the ADXL343BCCZ-RL7 is transmitted via a digital I2C or SPI interface, ensuring easy integration with microcontrollers and other digital systems.
  • Small Form Factor: Housed in a small, thin 3x5x1 mm LFCSP package, this accelerometer is designed to fit into compact spaces without compromising performance.

Applications

The versatility of the ADXL343BCCZ-RL7 makes it suitable for a wide range of applications, including but not limited to:

  • Mobile devices (phones, tablets)
  • Gaming and pointing devices
  • Sports and health devices
  • Industrial monitoring and control systems
  • Navigation and telematics
  • Free-fall detection systems

With its robust design and high functionality, the ADXL343BCCZ-RL7 from Analog Devices Inc. stands out as a premium choice for designers and engineers looking to incorporate reliable motion sensing into their projects.
