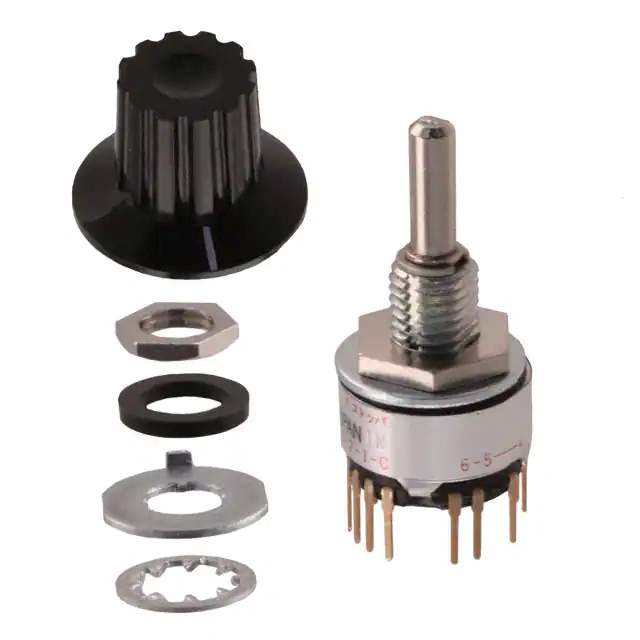

MRK206-A Real Image
Same model may have multiple batches, images only for reference.

MRK206-A

Part No MRK206-A
Manufacturer NKK Switches
Catalog Rotary Switches
Description SWITCH ROTARY 2-6POS 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr NKK Switches
Series MR
Package Box
Product Status Active
Number of Positions 2 ~ 6
Index Stops Adjustable
Number of Decks 1
Number of Poles per Deck 2
Circuit per Deck DP6T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Knob
Actuator Length 13.00mm
Angle of Throw 30°
Contact Material Phosphor Bronze
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Process Sealed
Depth Behind Panel 10.10mm
Panel Cutout Dimensions Circular - 6.35mm Dia
Base Product Number MRK206
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
California Prop 65 Warning Information
Win Source Part Number 644299-MRK206-A
Ultra Librarian 3D Model Ultra Librarian MRK206-A CAD Model

Description

The MR series rotary switch is a versatile component designed for various applications.

  • Positions: 2 to 6
  • Termination Style: PC pin
  • Seal: Process sealed
  • Contact Finish: Gold
  • Voltage Rating (AC): 28 V
  • Voltage Rating (DC): 28 V
  • Standard Package: 1 pc
  • Panel Cutout Dimension: 6.35mm diameter
  • Actuator Type: Knob
  • Actuator Length: 13.00mm
  • Mounting: Panel mount
  • Index Stop: Adjustable
  • Contact Timing: Non-shorting
  • Circuit per Deck: DP6T
  • Manufacturer: NKK Switches
